Abstract class for creating and managing generic graphical objects. More...

#include <object.hpp>

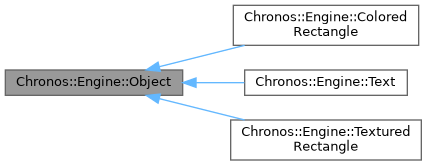

Inheritance diagram for Chronos::Engine::Object:

[legend]

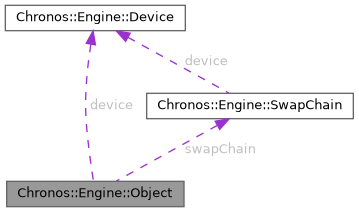

Collaboration diagram for Chronos::Engine::Object:

[legend]

Public Member Functions
void	init (Chronos::Engine::Device device, VkCommandPool commandPool, SwapChain swapChain, VkSampler textureSampler, VkRenderPass renderPass, ObjectType objectType, unsigned char vertShaderCode, int vertShaderCodeSize, unsigned char *fragShaderCode, int fragShaderCodeSize)
	Initializes the object.

virtual void	update (uint32_t currentFrame)=0
	Updates the object for the current frame.

virtual void	render (uint32_t currentFrame, uint32_t imageIndex, float bgColor[3], VkViewport &viewport, VkRect2D &scissor, std::vector< VkCommandBuffer > &commandBuffers)=0

virtual void	destroy ()=0
	Destroys the object and releases associated resources.

void	recreateGraphicsPipeline ()
	Recreates the graphics pipeline for the object.

Public Attributes
VkPipeline	graphicsPipeline

VkPipelineLayout	pipelineLayout

std::vector< VkDescriptorSet >	descriptorSets

Chronos::Engine::ObjectType	objectType

Protected Member Functions
void	createGraphicsPipeline ()
	Creates the graphics pipeline for the object.

void	createDescriptorPool ()
	Creates the Vulkan descriptor pool for the object.

void	createDescriptorSetLayout ()
	Creates the Vulkan descriptor set layout for the object.

virtual void	createDescriptorSets ()=0

virtual std::vector< VkDescriptorType >	getDescriptorTypes ()=0

virtual std::vector< VkShaderStageFlagBits >	getDescriptorStages ()=0

virtual PipelineAttributes	getPipelineAttributes ()=0

Protected Attributes
Chronos::Engine::Device *	device

Chronos::Engine::SwapChain *	swapChain

VkCommandPool	commandPool

VkSampler	textureSampler

VkRenderPass *	renderPass

VkDescriptorSetLayout	descriptorSetLayout

VkDescriptorPool	descriptorPool

std::vector< Chronos::Engine::UniformBuffer >	uniformBuffers

Private Attributes
unsigned char *	vertShaderCode

int	vertShaderCodeSize

unsigned char *	fragShaderCode

int	fragShaderCodeSize

Detailed Description

Abstract class for creating and managing generic graphical objects.

The Object class provides an interface for creating and managing generic graphical objects. Derived classes are expected to implement specific functionality for initialization, updates, and destruction of the object depending on specific use case.

Definition at line 66 of file object.hpp.

Member Function Documentation

◆ createDescriptorPool()

void Chronos::Engine::Object::createDescriptorPool ( )

protected

Creates the Vulkan descriptor pool for the object.

This method sets up and creates the Vulkan descriptor pool based on the descriptor types used by the object.

Definition at line 246 of file object.cpp.

{
    std::vector<VkDescriptorType> descriptorTypes = getDescriptorTypes();

    std::vector<VkDescriptorPoolSize> poolSizes { descriptorTypes.size() };

    for (size_t i = 0; i < descriptorTypes.size(); i++) {
    poolSizes[i].type = descriptorTypes[i];
    poolSizes[i].descriptorCount
        = static_cast<uint32_t>(MAX_FRAMES_IN_FLIGHT);
    }
    VkDescriptorPoolCreateInfo poolInfo {};
    poolInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_POOL_CREATE_INFO;
    poolInfo.poolSizeCount = static_cast<uint32_t>(poolSizes.size());
    poolInfo.pPoolSizes = poolSizes.data();
    poolInfo.maxSets = static_cast<uint32_t>(MAX_FRAMES_IN_FLIGHT);
    if (vkCreateDescriptorPool(
        device->device, &poolInfo, nullptr, &descriptorPool)
    != VK_SUCCESS) {
    throw std::runtime_error("failed to create descriptor pool!");
    }
}

References MAX_FRAMES_IN_FLIGHT.

Here is the caller graph for this function:

◆ createDescriptorSetLayout()

void Chronos::Engine::Object::createDescriptorSetLayout ( )

protected

Creates the Vulkan descriptor set layout for the object.

This method sets up and creates the Vulkan descriptor set layout based on the descriptor types and stages used by the object.

Definition at line 269 of file object.cpp.

{
    std::vector<VkDescriptorType> descriptorTypes = getDescriptorTypes();
    std::vector<VkShaderStageFlagBits> descriptorStages = getDescriptorStages();

    if (descriptorTypes.size() != descriptorStages.size()) {
    throw std::runtime_error(
        "descriptorTypes and descriptorStages must be the same size");
    }

    std::vector<VkDescriptorSetLayoutBinding> bindings {
    descriptorTypes.size()
    };

    for (size_t i = 0; i < descriptorTypes.size(); i++) {
    bindings[i].binding = i;
    bindings[i].descriptorType = descriptorTypes[i];
    bindings[i].descriptorCount = 1;
    bindings[i].stageFlags = descriptorStages[i];
    bindings[i].pImmutableSamplers = nullptr;
    }

    VkDescriptorSetLayoutCreateInfo layoutInfo {};
    layoutInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_LAYOUT_CREATE_INFO;
    layoutInfo.bindingCount = static_cast<uint32_t>(bindings.size());
    layoutInfo.pBindings = bindings.data();
    if (vkCreateDescriptorSetLayout(
        device->device, &layoutInfo, nullptr, &descriptorSetLayout)
    != VK_SUCCESS) {
    throw std::runtime_error("failed to create descriptor set layout!");
    }
}

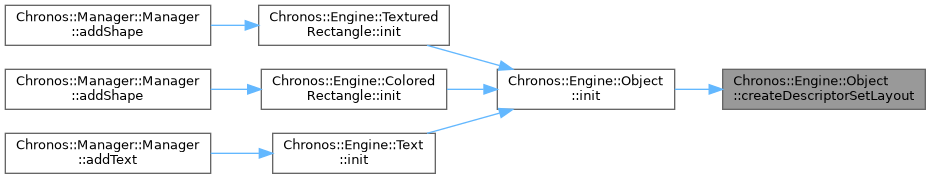

Here is the caller graph for this function:

◆ createDescriptorSets()

virtual void Chronos::Engine::Object::createDescriptorSets ( )

protectedpure virtual

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

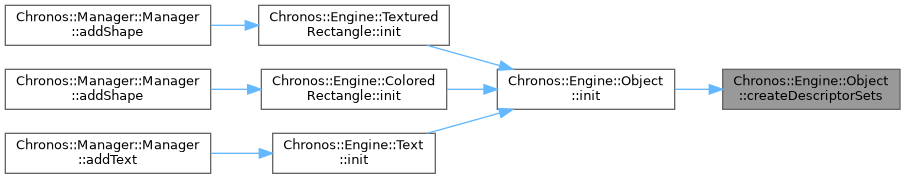

Here is the caller graph for this function:

◆ createGraphicsPipeline()

void Chronos::Engine::Object::createGraphicsPipeline ( )

protected

Creates the graphics pipeline for the object.

This method is responsible for configuring and creating the Vulkan graphics pipeline used by the object, including shader modules, vertex input, input assembly, viewport, rasterization, multisampling, color blending, and dynamic states.

Definition at line 80 of file object.cpp.

{
    Chronos::Engine::PipelineAttributes pipelineAttributes
    = getPipelineAttributes();

    VkShaderModule vertShaderModule
    = createShaderModule(this->vertShaderCode, this->vertShaderCodeSize,  device->device);
    VkShaderModule fragShaderModule
    = createShaderModule(this->fragShaderCode, this->fragShaderCodeSize, device->device);

    VkPipelineShaderStageCreateInfo vertShaderStageInfo {};
    vertShaderStageInfo.sType
    = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
    vertShaderStageInfo.stage = VK_SHADER_STAGE_VERTEX_BIT;
    vertShaderStageInfo.module = vertShaderModule;
    vertShaderStageInfo.pName
    = "main"; // start from main(vulkan can start from elsewhere also)

    VkPipelineShaderStageCreateInfo fragShaderStageInfo {};
    fragShaderStageInfo.sType
    = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
    fragShaderStageInfo.stage = VK_SHADER_STAGE_FRAGMENT_BIT;
    fragShaderStageInfo.module = fragShaderModule;
    fragShaderStageInfo.pName = "main";

    VkPipelineShaderStageCreateInfo shaderStages[]
    = { vertShaderStageInfo, fragShaderStageInfo };

    auto bindingDescription = pipelineAttributes.bindingDescriptions;
    auto attributeDescriptions = pipelineAttributes.attributeDescriptions;

    VkPipelineVertexInputStateCreateInfo vertexInputInfo {};
    vertexInputInfo.sType
    = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO;
    vertexInputInfo.vertexBindingDescriptionCount
    = static_cast<uint32_t>(bindingDescription.size());
    vertexInputInfo.vertexAttributeDescriptionCount
    = static_cast<uint32_t>(attributeDescriptions.size());
    vertexInputInfo.pVertexBindingDescriptions = bindingDescription.data();
    vertexInputInfo.pVertexAttributeDescriptions = attributeDescriptions.data();

    VkPipelineInputAssemblyStateCreateInfo inputAssembly {};
    inputAssembly.sType
    = VK_STRUCTURE_TYPE_PIPELINE_INPUT_ASSEMBLY_STATE_CREATE_INFO;
    inputAssembly.topology
    = pipelineAttributes.topology; // we are using indexed rendering so
                       // we need to use triangle list
    inputAssembly.primitiveRestartEnable = VK_FALSE;

    VkViewport viewport {};
    viewport.x = 0.0f;
    viewport.y = 0.0f;
    viewport.width = (float)(*swapChain).swapChainExtent.width;
    viewport.height = (float)(*swapChain).swapChainExtent.height;
    viewport.minDepth = 0.0f;
    viewport.maxDepth = 1.0f;

    VkRect2D scissor {};
    scissor.offset = { 0, 0 };
    scissor.extent = (*swapChain).swapChainExtent;

    VkPipelineViewportStateCreateInfo viewportState {};
    viewportState.sType = VK_STRUCTURE_TYPE_PIPELINE_VIEWPORT_STATE_CREATE_INFO;
    viewportState.viewportCount = 1;
    viewportState.pViewports = &viewport;
    viewportState.scissorCount = 1;
    viewportState.pScissors = &scissor;

    VkPipelineRasterizationStateCreateInfo rasterizer {};
    rasterizer.sType
    = VK_STRUCTURE_TYPE_PIPELINE_RASTERIZATION_STATE_CREATE_INFO;
    rasterizer.depthClampEnable = VK_FALSE;
    rasterizer.rasterizerDiscardEnable = VK_FALSE;
    rasterizer.polygonMode = VK_POLYGON_MODE_FILL;
    rasterizer.lineWidth = 1.0f;
    rasterizer.cullMode = VK_CULL_MODE_BACK_BIT;
    rasterizer.frontFace = pipelineAttributes.frontFace; // counter clockwuise
    rasterizer.depthBiasEnable = VK_FALSE;
    rasterizer.depthBiasConstantFactor = 0.0f;
    rasterizer.depthBiasClamp = 0.0f;
    rasterizer.depthBiasSlopeFactor = 0.0f;

    VkPipelineMultisampleStateCreateInfo multisampling {};
    multisampling.sType
    = VK_STRUCTURE_TYPE_PIPELINE_MULTISAMPLE_STATE_CREATE_INFO;
    multisampling.sampleShadingEnable = VK_FALSE;
    multisampling.rasterizationSamples = device->msaaSamples;
    multisampling.minSampleShading = 1.0f; // Optional
    multisampling.pSampleMask = nullptr; // Optional
    multisampling.alphaToCoverageEnable = VK_FALSE; // Optional
    multisampling.alphaToOneEnable = VK_FALSE;
    multisampling.sampleShadingEnable = VK_TRUE;

    VkPipelineColorBlendStateCreateInfo colorBlending {};
    colorBlending.sType
    = VK_STRUCTURE_TYPE_PIPELINE_COLOR_BLEND_STATE_CREATE_INFO;
    colorBlending.logicOpEnable = VK_FALSE;
    colorBlending.logicOp = VK_LOGIC_OP_COPY;
    colorBlending.attachmentCount = 1;
    colorBlending.pAttachments = &pipelineAttributes.colorBlendAttachment;
    colorBlending.blendConstants[0] = 0.0f;
    colorBlending.blendConstants[1] = 0.0f;
    colorBlending.blendConstants[2] = 0.0f;
    colorBlending.blendConstants[3] = 0.0f;

    std::vector<VkDynamicState> dynamicStates
    = { VK_DYNAMIC_STATE_VIEWPORT, VK_DYNAMIC_STATE_SCISSOR };
    VkPipelineDynamicStateCreateInfo dynamicState {};
    dynamicState.sType = VK_STRUCTURE_TYPE_PIPELINE_DYNAMIC_STATE_CREATE_INFO;
    dynamicState.dynamicStateCount
    = static_cast<uint32_t>(dynamicStates.size());
    dynamicState.pDynamicStates = dynamicStates.data();

    VkPipelineLayoutCreateInfo pipelineLayoutInfo {};
    pipelineLayoutInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO;
    pipelineLayoutInfo.setLayoutCount = 1; // Optional
    pipelineLayoutInfo.pSetLayouts = &descriptorSetLayout; // Optional
    pipelineLayoutInfo.pushConstantRangeCount = 0; // Optional
    pipelineLayoutInfo.pPushConstantRanges = nullptr; // Optional

    if (vkCreatePipelineLayout(
        device->device, &pipelineLayoutInfo, nullptr, &pipelineLayout)
    != VK_SUCCESS) {
    throw std::runtime_error("failed to create pipeline layout!");
    }

    VkGraphicsPipelineCreateInfo pipelineInfo {};
    pipelineInfo.sType = VK_STRUCTURE_TYPE_GRAPHICS_PIPELINE_CREATE_INFO;
    pipelineInfo.stageCount = 2;
    pipelineInfo.pStages = shaderStages;
    pipelineInfo.pVertexInputState = &vertexInputInfo;
    pipelineInfo.pInputAssemblyState = &inputAssembly;
    pipelineInfo.pViewportState = &viewportState;
    pipelineInfo.pRasterizationState = &rasterizer;
    pipelineInfo.pMultisampleState = &multisampling;
    pipelineInfo.pDepthStencilState = nullptr; // Optional
    pipelineInfo.pColorBlendState = &colorBlending;
    pipelineInfo.pDynamicState = &dynamicState;
    pipelineInfo.layout = pipelineLayout;
    pipelineInfo.renderPass = *renderPass;
    pipelineInfo.subpass = 0;
    pipelineInfo.basePipelineHandle = VK_NULL_HANDLE; // Optional
    pipelineInfo.basePipelineIndex = -1;

    if (vkCreateGraphicsPipelines(device->device, VK_NULL_HANDLE, 1,
        &pipelineInfo, nullptr, &graphicsPipeline)
    != VK_SUCCESS) {
    throw std::runtime_error("failed to create graphics pipeline!");
    }

    // destory the shader modules
    vkDestroyShaderModule(device->device, fragShaderModule, nullptr);
    vkDestroyShaderModule(device->device, vertShaderModule, nullptr);
}

References Chronos::Engine::PipelineAttributes::attributeDescriptions, Chronos::Engine::PipelineAttributes::bindingDescriptions, Chronos::Engine::PipelineAttributes::colorBlendAttachment, createShaderModule(), Chronos::Engine::PipelineAttributes::frontFace, and Chronos::Engine::PipelineAttributes::topology.

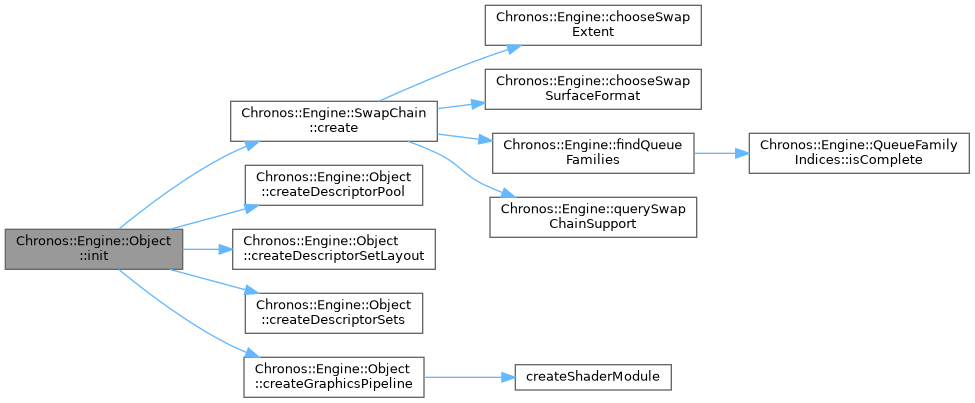

Here is the call graph for this function:

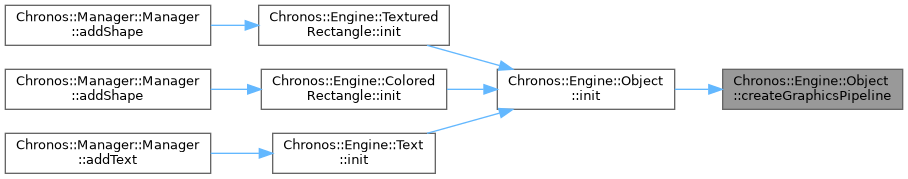

Here is the caller graph for this function:

◆ destroy()

void Chronos::Engine::Object::destroy ( )

pure virtual

Destroys the object and releases associated resources.

This method is responsible for cleaning up the object's resources, including uniform buffers, descriptor pool, descriptor set layout, graphics pipeline, and pipeline layout.

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

Definition at line 235 of file object.cpp.

{
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    uniformBuffers[i].destroy();
    }
    vkDestroyDescriptorPool(device->device, descriptorPool, nullptr);
    vkDestroyDescriptorSetLayout(device->device, descriptorSetLayout, nullptr);
    vkDestroyPipeline(device->device, graphicsPipeline, nullptr);
    vkDestroyPipelineLayout(device->device, pipelineLayout, nullptr);
}

References MAX_FRAMES_IN_FLIGHT.

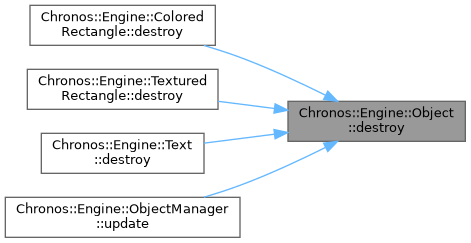

Here is the caller graph for this function:

◆ getDescriptorStages()

virtual std::vector< VkShaderStageFlagBits > Chronos::Engine::Object::getDescriptorStages ( )

protectedpure virtual

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

◆ getDescriptorTypes()

virtual std::vector< VkDescriptorType > Chronos::Engine::Object::getDescriptorTypes ( )

protectedpure virtual

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

◆ getPipelineAttributes()

virtual PipelineAttributes Chronos::Engine::Object::getPipelineAttributes ( )

protectedpure virtual

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

◆ init()

void Chronos::Engine::Object::init	(	Chronos::Engine::Device *	device,
		VkCommandPool	commandPool,
		SwapChain *	swapChain,
		VkSampler	textureSampler,
		VkRenderPass *	renderPass,
		ObjectType	objectType,
		unsigned char *	vertShaderCode,
		int	vertShaderCodeSize,
		unsigned char *	fragShaderCode,
		int	fragShaderCodeSize
	)

Initializes the object.

This method initializes the Object with necessary Vulkan-related parameters, such as the device, command pool, swap chain, texture sampler, and render pass. It also allocates uniform buffers and creates descriptor sets, descriptor pool, descriptor set layout, and the graphics pipeline for rendering the object.

Parameters

device	The device used by the object.
commandPool	Vulkan command pool for the object.
swapChain	Swap chain used by the object.
textureSampler	Vulkan texture sampler used by the object.
renderPass	Vulkan render pass that is used for rendering
objectType	Type of the object.
vertShaderCode	Vertex shader code in binary format.
vertShaderCodeSize	Size of the vertex shader code.
fragShaderCode	Fragment shader code in binary format.
fragShaderCodeSize	Size of the fragment shader code. object in question.

Definition at line 53 of file object.cpp.

{
    this->device = device;
    this->swapChain = swapChain;
    this->commandPool = commandPool;
    this->textureSampler = textureSampler;
    this->renderPass = renderPass;
    this->objectType = objectType;
    this->vertShaderCode = vertShaderCode;
    this->vertShaderCodeSize = vertShaderCodeSize;
    this->fragShaderCode = fragShaderCode;
    this->fragShaderCodeSize = fragShaderCodeSize;

    uniformBuffers.resize(MAX_FRAMES_IN_FLIGHT);
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    uniformBuffers[i].create(*device);
    }

    createDescriptorPool();
    createDescriptorSetLayout();
    createDescriptorSets();
    createGraphicsPipeline();
}

References commandPool, Chronos::Engine::SwapChain::create(), createDescriptorPool(), createDescriptorSetLayout(), createDescriptorSets(), createGraphicsPipeline(), device, fragShaderCode, fragShaderCodeSize, MAX_FRAMES_IN_FLIGHT, objectType, renderPass, swapChain, textureSampler, uniformBuffers, vertShaderCode, and vertShaderCodeSize.

Here is the call graph for this function:

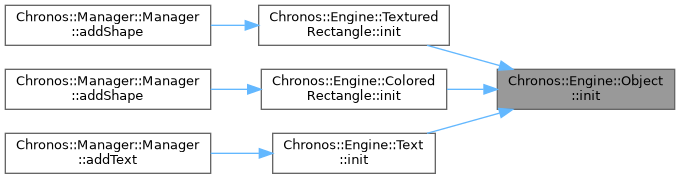

Here is the caller graph for this function:

◆ recreateGraphicsPipeline()

void Chronos::Engine::Object::recreateGraphicsPipeline ( )

Recreates the graphics pipeline for the object.

This method is used to recreate the graphics pipeline when needed, typically after changes in the rendering configuration such as MSAA changes. It destroys the existing graphics pipeline and pipeline layout before creating a new one.

Definition at line 302 of file object.cpp.

{
    vkDestroyPipeline(device->device, graphicsPipeline, nullptr);
    vkDestroyPipelineLayout(device->device, pipelineLayout, nullptr);
    createGraphicsPipeline();
}

◆ render()

virtual void Chronos::Engine::Object::render	(	uint32_t	currentFrame,
		uint32_t	imageIndex,
		float	bgColor[3],
		VkViewport &	viewport,
		VkRect2D &	scissor,
		std::vector< VkCommandBuffer > &	commandBuffers
	)

pure virtual

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

◆ update()

virtual void Chronos::Engine::Object::update ( uint32_t currentFrame )

pure virtual

Updates the object for the current frame.

This pure virtual method must be implemented by derived classes to perform any updates required for the object during each frame. The currentFrame parameter represents the index of the current frame in the application.

Parameters

currentFrame Index of the current frame.

Implemented in Chronos::Engine::ColoredRectangle, Chronos::Engine::TexturedRectangle, and Chronos::Engine::Text.

Member Data Documentation

◆ commandPool

VkCommandPool Chronos::Engine::Object::commandPool

protected

Vulkan command pool associated with the object.

Definition at line 143 of file object.hpp.

◆ descriptorPool

VkDescriptorPool Chronos::Engine::Object::descriptorPool

protected

Vulkan descriptor pool used by the object.

Definition at line 152 of file object.hpp.

◆ descriptorSetLayout

VkDescriptorSetLayout Chronos::Engine::Object::descriptorSetLayout

protected

Vulkan descriptor set layout used by the object.

Definition at line 149 of file object.hpp.

◆ descriptorSets

std::vector<VkDescriptorSet> Chronos::Engine::Object::descriptorSets

Vulkan descriptor sets associated with the object.

Definition at line 135 of file object.hpp.

◆ device

Chronos::Engine::Device* Chronos::Engine::Object::device

protected

Device to render to.

Definition at line 140 of file object.hpp.

◆ fragShaderCode

unsigned char* Chronos::Engine::Object::fragShaderCode

private

Fragment shader code.

Definition at line 187 of file object.hpp.

◆ fragShaderCodeSize

int Chronos::Engine::Object::fragShaderCodeSize

private

Size of the fragment shader code.

Definition at line 188 of file object.hpp.

◆ graphicsPipeline

VkPipeline Chronos::Engine::Object::graphicsPipeline

Vulkan graphics pipeline used by the object.

Definition at line 130 of file object.hpp.

◆ objectType

Chronos::Engine::ObjectType Chronos::Engine::Object::objectType

Type of the object.

Definition at line 137 of file object.hpp.

◆ pipelineLayout

VkPipelineLayout Chronos::Engine::Object::pipelineLayout

Vulkan pipeline layout used by the object.

Definition at line 133 of file object.hpp.

◆ renderPass

VkRenderPass* Chronos::Engine::Object::renderPass

protected

Renderpass that the object will render to.

Definition at line 147 of file object.hpp.

◆ swapChain

Chronos::Engine::SwapChain* Chronos::Engine::Object::swapChain

protected

Swapchain to present to.

Definition at line 141 of file object.hpp.

◆ textureSampler

VkSampler Chronos::Engine::Object::textureSampler

protected

Vulkan texture sampler used by the object.

Definition at line 145 of file object.hpp.

◆ uniformBuffers

std::vector<Chronos::Engine::UniformBuffer> Chronos::Engine::Object::uniformBuffers

protected

uniform buffers associated with the object.

Definition at line 183 of file object.hpp.

◆ vertShaderCode

unsigned char* Chronos::Engine::Object::vertShaderCode

private

Vertex shader code.

Definition at line 185 of file object.hpp.

◆ vertShaderCodeSize

int Chronos::Engine::Object::vertShaderCodeSize

private

Size of the vertex shader code.

Definition at line 186 of file object.hpp.

The documentation for this class was generated from the following files:

Source/Rendering/Objects/object.hpp
Source/Rendering/Objects/object.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Function Documentation

◆ createDescriptorPool()

◆ createDescriptorSetLayout()

◆ createDescriptorSets()

◆ createGraphicsPipeline()

◆ destroy()

◆ getDescriptorStages()

◆ getDescriptorTypes()

◆ getPipelineAttributes()

◆ init()

◆ recreateGraphicsPipeline()

◆ render()

◆ update()

Member Data Documentation

◆ commandPool

◆ descriptorPool

◆ descriptorSetLayout

◆ descriptorSets

◆ device

◆ fragShaderCode

◆ fragShaderCodeSize

◆ graphicsPipeline

◆ objectType

◆ pipelineLayout

◆ renderPass

◆ swapChain

◆ textureSampler

◆ uniformBuffers

◆ vertShaderCode

◆ vertShaderCodeSize
