Chronos::Engine::ColoredRectangle Class Reference

#include <ColoredRectangle.hpp>

Inheritance diagram for Chronos::Engine::ColoredRectangle:

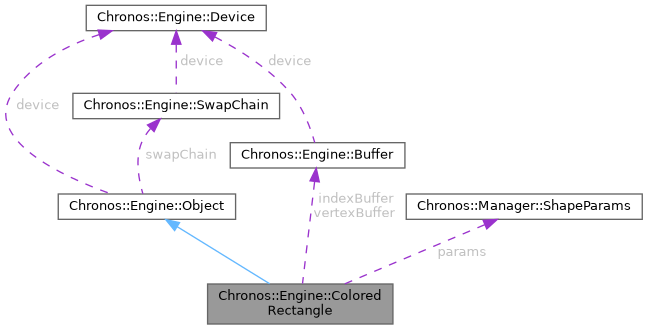

Collaboration diagram for Chronos::Engine::ColoredRectangle:

Public Member Functions
void	init (Chronos::Engine::Device *device, VkCommandPool commandPool, Chronos::Engine::SwapChain *swapChain, VkSampler textureSampler, VkRenderPass *renderPass)
void	update (uint32_t currentFrame) override
	Updates the object for the current frame.
void	destroy () override
	Destroys the object and releases associated resources.
void	render (uint32_t currentFrame, uint32_t imageIndex, float bgColor[3], VkViewport &viewport, VkRect2D &scissor, std::vector< VkCommandBuffer > &commandBuffers) override
Public Member Functions inherited from Chronos::Engine::Object
void	init (Chronos::Engine::Device *device, VkCommandPool commandPool, SwapChain *swapChain, VkSampler textureSampler, VkRenderPass *renderPass, ObjectType objectType, unsigned char *vertShaderCode, int vertShaderCodeSize, unsigned char *fragShaderCode, int fragShaderCodeSize)
	Initializes the object.
void	recreateGraphicsPipeline ()
	Recreates the graphics pipeline for the object.

Public Attributes
const std::vector< uint16_t >	indices = std::vector<uint16_t> { 0, 1, 2, 2, 3, 0 }
Chronos::Manager::ShapeParams	params
const std::vector< ColorVertex >	vertices
Chronos::Engine::Buffer	vertexBuffer
	The vertex buffer that is used to store the vertices.
Chronos::Engine::Buffer	indexBuffer
	The index buffer that is used to store the indices.
Public Attributes inherited from Chronos::Engine::Object
VkPipeline	graphicsPipeline
VkPipelineLayout	pipelineLayout
std::vector< VkDescriptorSet >	descriptorSets
Chronos::Engine::ObjectType	objectType

Private Member Functions
void	createDescriptorSets () override
std::vector< VkDescriptorType >	getDescriptorTypes () override
std::vector< VkShaderStageFlagBits >	getDescriptorStages () override
PipelineAttributes	getPipelineAttributes () override

Private Attributes
std::vector< Chronos::Engine::ColorBuffer >	colorBuffers

Additional Inherited Members
Protected Member Functions inherited from Chronos::Engine::Object
void	createGraphicsPipeline ()
	Creates the graphics pipeline for the object.
void	createDescriptorPool ()
	Creates the Vulkan descriptor pool for the object.
void	createDescriptorSetLayout ()
	Creates the Vulkan descriptor set layout for the object.
Protected Attributes inherited from Chronos::Engine::Object
Chronos::Engine::Device *	device
Chronos::Engine::SwapChain *	swapChain
VkCommandPool	commandPool
VkSampler	textureSampler
VkRenderPass *	renderPass
VkDescriptorSetLayout	descriptorSetLayout
VkDescriptorPool	descriptorPool
std::vector< Chronos::Engine::UniformBuffer >	uniformBuffers

Detailed Description

Definition at line 33 of file ColoredRectangle.hpp.

Member Function Documentation

createDescriptorSets()

void Chronos::Engine::ColoredRectangle::createDescriptorSets ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 74 of file ColoredRectangle.cpp.

{
    std::vector<VkDescriptorSetLayout> layouts(
    MAX_FRAMES_IN_FLIGHT, descriptorSetLayout);
    VkDescriptorSetAllocateInfo allocInfo {};
    allocInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_ALLOCATE_INFO;
    allocInfo.descriptorPool = descriptorPool;
    allocInfo.descriptorSetCount = static_cast<uint32_t>(MAX_FRAMES_IN_FLIGHT);
    allocInfo.pSetLayouts = layouts.data();
    descriptorSets.resize(MAX_FRAMES_IN_FLIGHT);
    if (vkAllocateDescriptorSets(
        device->device, &allocInfo, descriptorSets.data())
    != VK_SUCCESS) {
    throw std::runtime_error("failed to allocate descriptor sets!");
    }
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    VkDescriptorBufferInfo bufferInfo {};
    bufferInfo.buffer = uniformBuffers[i].buffer;
    bufferInfo.offset = 0;
    bufferInfo.range = sizeof(UniformBufferObject);

    VkDescriptorBufferInfo bufferInfo2 {};
    bufferInfo2.buffer = colorBuffers[i].buffer;
    bufferInfo2.offset = 0;
    bufferInfo2.range = sizeof(UniformColorBufferObject);

    std::array<VkWriteDescriptorSet, 2> descriptorWrites {};

    descriptorWrites[0].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
    descriptorWrites[0].dstSet = descriptorSets[i];
    descriptorWrites[0].dstBinding = 0;
    descriptorWrites[0].dstArrayElement = 0;
    descriptorWrites[0].descriptorType = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
    descriptorWrites[0].descriptorCount = 1;
    descriptorWrites[0].pBufferInfo = &bufferInfo;

    descriptorWrites[1].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
    descriptorWrites[1].dstSet = descriptorSets[i];
    descriptorWrites[1].dstBinding = 1;
    descriptorWrites[1].dstArrayElement = 0;
    descriptorWrites[1].descriptorType = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
    descriptorWrites[1].descriptorCount = 1;
    descriptorWrites[1].pBufferInfo = &bufferInfo2;

    vkUpdateDescriptorSets(device->device,
        static_cast<uint32_t>(descriptorWrites.size()),
        descriptorWrites.data(), 0, nullptr);
    }
}

References MAX_FRAMES_IN_FLIGHT.

destroy()

void Chronos::Engine::ColoredRectangle::destroy ( )

overridevirtual

Destroys the object and releases associated resources.

This method is responsible for cleaning up the object's resources, including uniform buffers, descriptor pool, descriptor set layout, graphics pipeline, and pipeline layout.

Implements Chronos::Engine::Object.

Definition at line 64 of file ColoredRectangle.cpp.

{
    vertexBuffer.destroy();
    indexBuffer.destroy();
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    colorBuffers[i].destroy();
    }
    Chronos::Engine::Object::destroy();
}

References Chronos::Engine::Object::destroy(), and MAX_FRAMES_IN_FLIGHT.

Here is the call graph for this function:

getDescriptorStages()

std::vector< VkShaderStageFlagBits > Chronos::Engine::ColoredRectangle::getDescriptorStages ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 132 of file ColoredRectangle.cpp.

{
    return std::vector<VkShaderStageFlagBits> { VK_SHADER_STAGE_VERTEX_BIT,
    VK_SHADER_STAGE_FRAGMENT_BIT };
}

getDescriptorTypes()

std::vector< VkDescriptorType > Chronos::Engine::ColoredRectangle::getDescriptorTypes ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 125 of file ColoredRectangle.cpp.

{
    return std::vector<VkDescriptorType> { VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
    VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER };
}

getPipelineAttributes()

Chronos::Engine::PipelineAttributes Chronos::Engine::ColoredRectangle::getPipelineAttributes ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 139 of file ColoredRectangle.cpp.

{
    Chronos::Engine::PipelineAttributes pipelineAttributes;

    auto bindingDescription = ColorVertex::getBindingDescription();
    auto attributeDescriptions = ColorVertex::getAttributeDescriptions();

    pipelineAttributes.bindingDescriptions.resize(1);
    pipelineAttributes.bindingDescriptions[0] = bindingDescription;

    pipelineAttributes.attributeDescriptions.resize(
    attributeDescriptions.size());
    for (int i = 0; i < static_cast<int>(attributeDescriptions.size()); i++) {
    pipelineAttributes.attributeDescriptions[i] = attributeDescriptions[i];
    }

    pipelineAttributes.topology = VK_PRIMITIVE_TOPOLOGY_TRIANGLE_LIST;
    pipelineAttributes.frontFace = VK_FRONT_FACE_COUNTER_CLOCKWISE;

    pipelineAttributes.colorBlendAttachment.colorWriteMask
    = VK_COLOR_COMPONENT_R_BIT | VK_COLOR_COMPONENT_G_BIT
    | VK_COLOR_COMPONENT_B_BIT | VK_COLOR_COMPONENT_A_BIT;
    pipelineAttributes.colorBlendAttachment.blendEnable = VK_FALSE;
    pipelineAttributes.colorBlendAttachment.srcColorBlendFactor
    = VK_BLEND_FACTOR_ONE;
    pipelineAttributes.colorBlendAttachment.dstColorBlendFactor
    = VK_BLEND_FACTOR_ZERO; // Optional
    pipelineAttributes.colorBlendAttachment.colorBlendOp
    = VK_BLEND_OP_ADD; // Optional
    pipelineAttributes.colorBlendAttachment.srcAlphaBlendFactor
    = VK_BLEND_FACTOR_ONE; // Optional
    pipelineAttributes.colorBlendAttachment.dstAlphaBlendFactor
    = VK_BLEND_FACTOR_ZERO; // Optional
    pipelineAttributes.colorBlendAttachment.alphaBlendOp
    = VK_BLEND_OP_ADD; // Optional

    return pipelineAttributes;
}

References Chronos::Engine::PipelineAttributes::attributeDescriptions, Chronos::Engine::PipelineAttributes::bindingDescriptions, Chronos::Engine::PipelineAttributes::colorBlendAttachment, Chronos::Engine::PipelineAttributes::frontFace, Chronos::Engine::ColorVertex::getAttributeDescriptions(), Chronos::Engine::ColorVertex::getBindingDescription(), and Chronos::Engine::PipelineAttributes::topology.

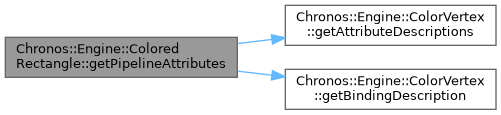

Here is the call graph for this function:

init()

void Chronos::Engine::ColoredRectangle::init	(	Chronos::Engine::Device *	device,
		VkCommandPool	commandPool,
		Chronos::Engine::SwapChain *	swapChain,
		VkSampler	textureSampler,
		VkRenderPass *	renderPass
	)

Definition at line 27 of file ColoredRectangle.cpp.

{

    colorBuffers.resize(MAX_FRAMES_IN_FLIGHT);
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    colorBuffers[i].create(*device);
    }

    Chronos::Engine::Object::init(device, commandPool, swapChain,
    textureSampler, renderPass,
    Chronos::Engine::ObjectType::TypeColoredRectangle,
    colorVert_spv, colorVert_spv_len, colorFrag_spv, colorFrag_spv_len);

    // create the vertex and index buffers and copy the data
    vertexBuffer.size = sizeof(vertices[0]) * vertices.size();
    vertexBuffer.create(*device,
    VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_VERTEX_BUFFER_BIT,
    VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT);
    vertexBuffer.copy((void*)vertices.data(), commandPool);

    indexBuffer.size = sizeof(indices[0]) * indices.size();
    indexBuffer.create(*device,
    VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_INDEX_BUFFER_BIT,
    VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT);
    indexBuffer.copy((void*)indices.data(), commandPool);
}

References colorBuffers, Chronos::Engine::Object::commandPool, Chronos::Engine::Buffer::copy(), Chronos::Engine::Buffer::create(), Chronos::Engine::Object::device, indexBuffer, indices, Chronos::Engine::Object::init(), MAX_FRAMES_IN_FLIGHT, Chronos::Engine::Object::renderPass, Chronos::Engine::Buffer::size, Chronos::Engine::Object::swapChain, Chronos::Engine::Object::textureSampler, Chronos::Engine::TypeColoredRectangle, vertexBuffer, and vertices.

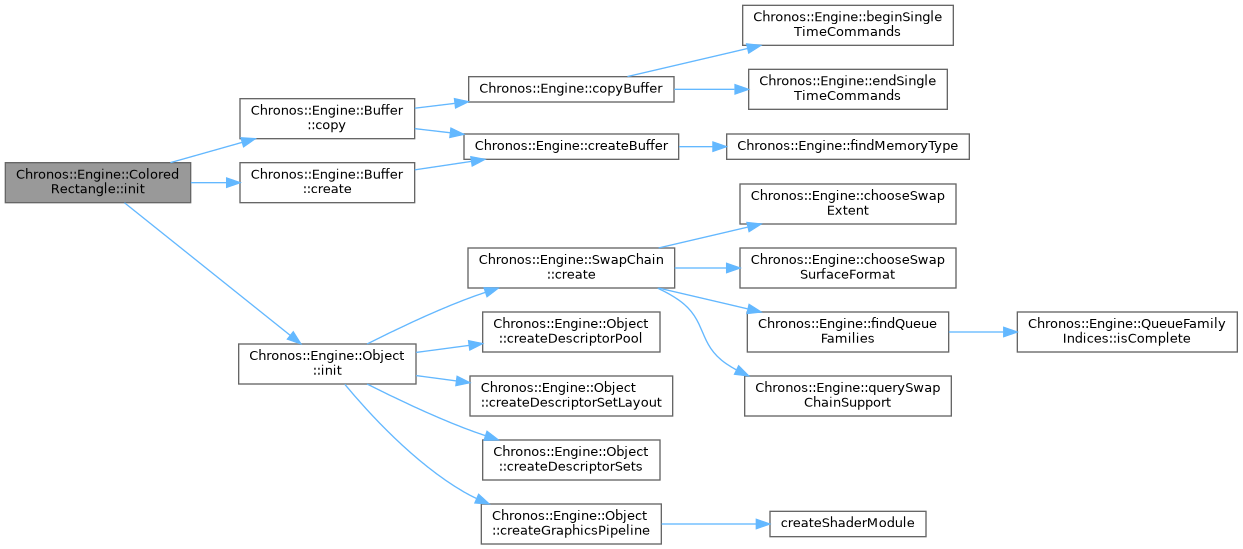

Here is the call graph for this function:

Here is the caller graph for this function:

render()

void Chronos::Engine::ColoredRectangle::render ( uint32_t  currentFrame, uint32_t  imageIndex, float  bgColor[3], VkViewport &  viewport, VkRect2D &  scissor, std::vector< VkCommandBuffer > &  commandBuffers  )

overridevirtual

Implements Chronos::Engine::Object.

Definition at line 178 of file ColoredRectangle.cpp.

{

    vkCmdBindPipeline(commandBuffers[currentFrame],
    VK_PIPELINE_BIND_POINT_GRAPHICS, this->graphicsPipeline);
    vkCmdSetViewport(commandBuffers[currentFrame], 0, 1, &viewport);
    vkCmdSetScissor(commandBuffers[currentFrame], 0, 1, &scissor);
    VkBuffer vertexBuffers[] = { this->vertexBuffer.buffer };
    VkDeviceSize offsets[] = { 0 };
    vkCmdBindVertexBuffers(
    commandBuffers[currentFrame], 0, 1, vertexBuffers, offsets);
    vkCmdBindIndexBuffer(commandBuffers[currentFrame], this->indexBuffer.buffer,
    0, VK_INDEX_TYPE_UINT16);
    vkCmdBindDescriptorSets(commandBuffers[currentFrame],
    VK_PIPELINE_BIND_POINT_GRAPHICS, this->pipelineLayout, 0, 1,
    &this->descriptorSets[currentFrame], 0, nullptr);
    vkCmdDrawIndexed(commandBuffers[currentFrame],
    static_cast<uint32_t>(this->indices.size()), 1, 0, 0, 0);
}

update()

void Chronos::Engine::ColoredRectangle::update ( uint32_t  currentFrame )

overridevirtual

Updates the object for the current frame.

This pure virtual method must be implemented by derived classes to perform any updates required for the object during each frame. The currentFrame parameter represents the index of the current frame in the application.

Parameters

currentFrame

Index of the current frame.

Implements Chronos::Engine::Object.

Definition at line 56 of file ColoredRectangle.cpp.

{
    uniformBuffers[currentFrame].update(swapChain->swapChainExtent, params.x,
    params.y, params.rotation, params.xSize, params.ySize);
    colorBuffers[currentFrame].update(
    { params.color[0], params.color[1], params.color[2] });
}

Member Data Documentation

colorBuffers

std::vector<Chronos::Engine::ColorBuffer> Chronos::Engine::ColoredRectangle::colorBuffers

private

Definition at line 66 of file ColoredRectangle.hpp.

indexBuffer

Chronos::Engine::Buffer Chronos::Engine::ColoredRectangle::indexBuffer

The index buffer that is used to store the indices.

Definition at line 59 of file ColoredRectangle.hpp.

indices

const std::vector<uint16_t> Chronos::Engine::ColoredRectangle::indices = std::vector<uint16_t> { 0, 1, 2, 2, 3, 0 }

Definition at line 40 of file ColoredRectangle.hpp.

{ 0, 1, 2, 2, 3, 0 };

params

Chronos::Manager::ShapeParams Chronos::Engine::ColoredRectangle::params

Definition at line 42 of file ColoredRectangle.hpp.

vertexBuffer

Chronos::Engine::Buffer Chronos::Engine::ColoredRectangle::vertexBuffer

The vertex buffer that is used to store the vertices.

Definition at line 51 of file ColoredRectangle.hpp.

vertices

const std::vector<ColorVertex> Chronos::Engine::ColoredRectangle::vertices

Initial value:

= std::vector<ColorVertex> { { { -0.5f, -0.5f } },
          { { 0.5f, -0.5f } }, { { 0.5f, 0.5f } },
          { { -0.5f, 0.5f } } }

Definition at line 43 of file ColoredRectangle.hpp.

                                 { { { -0.5f, -0.5f } },
          { { 0.5f, -0.5f } }, { { 0.5f, 0.5f } },
          { { -0.5f, 0.5f } } };

---

The documentation for this class was generated from the following files:

• Source/Rendering/Objects/Rectangle/ColoredRectangle.hpp
• Source/Rendering/Objects/Rectangle/ColoredRectangle.cpp
