Chronos::Engine::TexturedRectangle Class Reference

#include <TexturedRectangle.hpp>

Inheritance diagram for Chronos::Engine::TexturedRectangle:

Collaboration diagram for Chronos::Engine::TexturedRectangle:

Public Member Functions
void	init (Chronos::Engine::Device *device, VkCommandPool commandPool, Chronos::Engine::SwapChain *swapChain, VkSampler textureSampler, Chronos::Engine::Texture texture, VkRenderPass *renderPass)
void	update (uint32_t currentFrame) override
	Updates the object for the current frame.
void	destroy () override
	Destroys the object and releases associated resources.
void	render (uint32_t currentFrame, uint32_t imageIndex, float bgColor[3], VkViewport &viewport, VkRect2D &scissor, std::vector< VkCommandBuffer > &commandBuffers) override
Public Member Functions inherited from Chronos::Engine::Object
void	init (Chronos::Engine::Device *device, VkCommandPool commandPool, SwapChain *swapChain, VkSampler textureSampler, VkRenderPass *renderPass, ObjectType objectType, unsigned char *vertShaderCode, int vertShaderCodeSize, unsigned char *fragShaderCode, int fragShaderCodeSize)
	Initializes the object.
void	recreateGraphicsPipeline ()
	Recreates the graphics pipeline for the object.

Public Attributes
const std::vector< uint16_t >	indices = std::vector<uint16_t> { 0, 1, 2, 2, 3, 0 }
const std::vector< TexturedVertex >	vertices
Chronos::Engine::Texture	texture
Chronos::Manager::ShapeParams	params
Chronos::Engine::Buffer	vertexBuffer
	The vertex buffer that is used to store the vertices.
Chronos::Engine::Buffer	indexBuffer
	The index buffer that is used to store the indices.
Public Attributes inherited from Chronos::Engine::Object
VkPipeline	graphicsPipeline
VkPipelineLayout	pipelineLayout
std::vector< VkDescriptorSet >	descriptorSets
Chronos::Engine::ObjectType	objectType

Private Member Functions
void	createDescriptorSets () override
std::vector< VkDescriptorType >	getDescriptorTypes () override
std::vector< VkShaderStageFlagBits >	getDescriptorStages () override
PipelineAttributes	getPipelineAttributes () override

Additional Inherited Members
Protected Member Functions inherited from Chronos::Engine::Object
void	createGraphicsPipeline ()
	Creates the graphics pipeline for the object.
void	createDescriptorPool ()
	Creates the Vulkan descriptor pool for the object.
void	createDescriptorSetLayout ()
	Creates the Vulkan descriptor set layout for the object.
Protected Attributes inherited from Chronos::Engine::Object
Chronos::Engine::Device *	device
Chronos::Engine::SwapChain *	swapChain
VkCommandPool	commandPool
VkSampler	textureSampler
VkRenderPass *	renderPass
VkDescriptorSetLayout	descriptorSetLayout
VkDescriptorPool	descriptorPool
std::vector< Chronos::Engine::UniformBuffer >	uniformBuffers

Detailed Description

Definition at line 34 of file TexturedRectangle.hpp.

Member Function Documentation

createDescriptorSets()

void Chronos::Engine::TexturedRectangle::createDescriptorSets ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 67 of file TexturedRectangle.cpp.

{
    std::vector<VkDescriptorSetLayout> layouts(
    MAX_FRAMES_IN_FLIGHT, descriptorSetLayout);
    VkDescriptorSetAllocateInfo allocInfo {};
    allocInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_ALLOCATE_INFO;
    allocInfo.descriptorPool = descriptorPool;
    allocInfo.descriptorSetCount = static_cast<uint32_t>(MAX_FRAMES_IN_FLIGHT);
    allocInfo.pSetLayouts = layouts.data();
    descriptorSets.resize(MAX_FRAMES_IN_FLIGHT);
    if (vkAllocateDescriptorSets(
        device->device, &allocInfo, descriptorSets.data())
    != VK_SUCCESS) {
    throw std::runtime_error("failed to allocate descriptor sets!");
    }
    for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
    VkDescriptorBufferInfo bufferInfo {};
    bufferInfo.buffer = uniformBuffers[i].buffer;
    bufferInfo.offset = 0;
    bufferInfo.range = sizeof(UniformBufferObject);

    VkDescriptorImageInfo imageInfo {};
    imageInfo.imageLayout = VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL;
    imageInfo.imageView = texture.textureImageView;
    imageInfo.sampler = textureSampler;

    std::array<VkWriteDescriptorSet, 2> descriptorWrites {};
    descriptorWrites[0].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
    descriptorWrites[0].dstSet = descriptorSets[i];
    descriptorWrites[0].dstBinding = 0;
    descriptorWrites[0].dstArrayElement = 0;
    descriptorWrites[0].descriptorType = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
    descriptorWrites[0].descriptorCount = 1;
    descriptorWrites[0].pBufferInfo = &bufferInfo;

    descriptorWrites[1].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
    descriptorWrites[1].dstSet = descriptorSets[i];
    descriptorWrites[1].dstBinding = 1;
    descriptorWrites[1].dstArrayElement = 0;
    descriptorWrites[1].descriptorType
        = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
    descriptorWrites[1].descriptorCount = 1;
    descriptorWrites[1].pImageInfo = &imageInfo;

    vkUpdateDescriptorSets(device->device,
        static_cast<uint32_t>(descriptorWrites.size()),
        descriptorWrites.data(), 0, nullptr);
    }
}

References MAX_FRAMES_IN_FLIGHT.

destroy()

void Chronos::Engine::TexturedRectangle::destroy ( )

overridevirtual

Destroys the object and releases associated resources.

This method is responsible for cleaning up the object's resources, including uniform buffers, descriptor pool, descriptor set layout, graphics pipeline, and pipeline layout.

Implements Chronos::Engine::Object.

Definition at line 60 of file TexturedRectangle.cpp.

{
    vertexBuffer.destroy();
    indexBuffer.destroy();
    Chronos::Engine::Object::destroy();
}

References Chronos::Engine::Object::destroy().

Here is the call graph for this function:

getDescriptorStages()

std::vector< VkShaderStageFlagBits > Chronos::Engine::TexturedRectangle::getDescriptorStages ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 125 of file TexturedRectangle.cpp.

{
    return std::vector<VkShaderStageFlagBits> { VK_SHADER_STAGE_VERTEX_BIT,
    VK_SHADER_STAGE_FRAGMENT_BIT };
}

getDescriptorTypes()

std::vector< VkDescriptorType > Chronos::Engine::TexturedRectangle::getDescriptorTypes ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 118 of file TexturedRectangle.cpp.

{
    return std::vector<VkDescriptorType> { VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
    VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER };
}

getPipelineAttributes()

Chronos::Engine::PipelineAttributes Chronos::Engine::TexturedRectangle::getPipelineAttributes ( )

overrideprivatevirtual

Implements Chronos::Engine::Object.

Definition at line 132 of file TexturedRectangle.cpp.

{
    Chronos::Engine::PipelineAttributes pipelineAttributes;

    auto bindingDescription = TexturedVertex::getBindingDescription();
    auto attributeDescriptions = TexturedVertex::getAttributeDescriptions();

    pipelineAttributes.bindingDescriptions.resize(1);
    pipelineAttributes.bindingDescriptions[0] = bindingDescription;

    pipelineAttributes.attributeDescriptions.resize(
    attributeDescriptions.size());
    for (int i = 0; i < static_cast<int>(attributeDescriptions.size()); i++) {
    pipelineAttributes.attributeDescriptions[i] = attributeDescriptions[i];
    }

    pipelineAttributes.topology = VK_PRIMITIVE_TOPOLOGY_TRIANGLE_LIST;
    pipelineAttributes.frontFace = VK_FRONT_FACE_COUNTER_CLOCKWISE;

    pipelineAttributes.colorBlendAttachment.colorWriteMask
    = VK_COLOR_COMPONENT_R_BIT | VK_COLOR_COMPONENT_G_BIT
    | VK_COLOR_COMPONENT_B_BIT | VK_COLOR_COMPONENT_A_BIT;
    pipelineAttributes.colorBlendAttachment.blendEnable = VK_FALSE;
    pipelineAttributes.colorBlendAttachment.srcColorBlendFactor
    = VK_BLEND_FACTOR_ONE;
    pipelineAttributes.colorBlendAttachment.dstColorBlendFactor
    = VK_BLEND_FACTOR_ZERO; // Optional
    pipelineAttributes.colorBlendAttachment.colorBlendOp
    = VK_BLEND_OP_ADD; // Optional
    pipelineAttributes.colorBlendAttachment.srcAlphaBlendFactor
    = VK_BLEND_FACTOR_ONE; // Optional
    pipelineAttributes.colorBlendAttachment.dstAlphaBlendFactor
    = VK_BLEND_FACTOR_ZERO; // Optional
    pipelineAttributes.colorBlendAttachment.alphaBlendOp
    = VK_BLEND_OP_ADD; // Optional

    return pipelineAttributes;
}

References Chronos::Engine::PipelineAttributes::attributeDescriptions, Chronos::Engine::PipelineAttributes::bindingDescriptions, Chronos::Engine::PipelineAttributes::colorBlendAttachment, Chronos::Engine::PipelineAttributes::frontFace, Chronos::Engine::TexturedVertex::getAttributeDescriptions(), Chronos::Engine::TexturedVertex::getBindingDescription(), and Chronos::Engine::PipelineAttributes::topology.

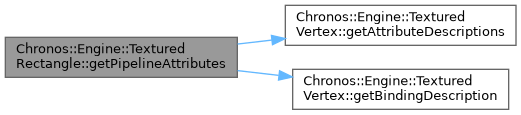

Here is the call graph for this function:

init()

void Chronos::Engine::TexturedRectangle::init	(	Chronos::Engine::Device *	device,
		VkCommandPool	commandPool,
		Chronos::Engine::SwapChain *	swapChain,
		VkSampler	textureSampler,
		Chronos::Engine::Texture	texture,
		VkRenderPass *	renderPass
	)

Definition at line 28 of file TexturedRectangle.cpp.

{
    this->texture = texture;

    Chronos::Engine::Object::init(device, commandPool, swapChain,
    textureSampler, renderPass,
    Chronos::Engine::ObjectType::TypeTexturedRectangle, textureVert_spv, textureVert_spv_len,
    textureFrag_spv, textureFrag_spv_len);

    // create the vertex and index buffers and copy the data
    vertexBuffer.size = sizeof(vertices[0]) * vertices.size();
    vertexBuffer.create(*device,
    VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_VERTEX_BUFFER_BIT,
    VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT);
    vertexBuffer.copy((void*)vertices.data(), commandPool);

    indexBuffer.size = sizeof(indices[0]) * indices.size();
    indexBuffer.create(*device,
    VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_INDEX_BUFFER_BIT,
    VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT);
    indexBuffer.copy((void*)indices.data(), commandPool);
}

References Chronos::Engine::Object::commandPool, Chronos::Engine::Buffer::copy(), Chronos::Engine::Buffer::create(), Chronos::Engine::Object::device, indexBuffer, indices, Chronos::Engine::Object::init(), Chronos::Engine::Object::renderPass, Chronos::Engine::Buffer::size, Chronos::Engine::Object::swapChain, texture, Chronos::Engine::Object::textureSampler, Chronos::Engine::TypeTexturedRectangle, vertexBuffer, and vertices.

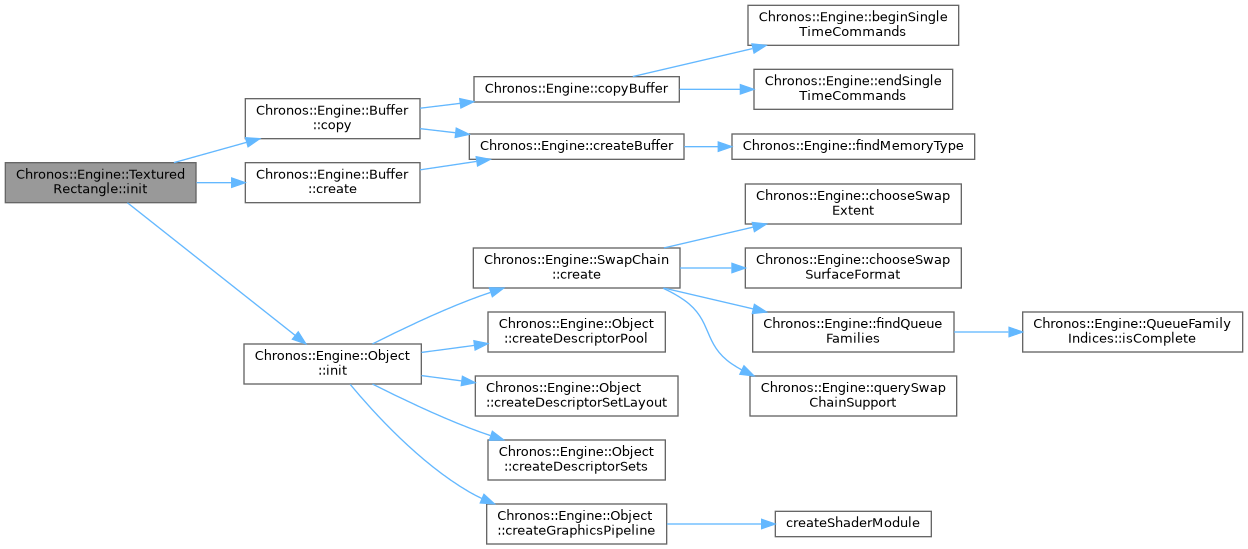

Here is the call graph for this function:

Here is the caller graph for this function:

render()

void Chronos::Engine::TexturedRectangle::render ( uint32_t  currentFrame, uint32_t  imageIndex, float  bgColor[3], VkViewport &  viewport, VkRect2D &  scissor, std::vector< VkCommandBuffer > &  commandBuffers  )

overridevirtual

Implements Chronos::Engine::Object.

Definition at line 171 of file TexturedRectangle.cpp.

{

    vkCmdBindPipeline(commandBuffers[currentFrame],
    VK_PIPELINE_BIND_POINT_GRAPHICS, this->graphicsPipeline);
    vkCmdSetViewport(commandBuffers[currentFrame], 0, 1, &viewport);
    vkCmdSetScissor(commandBuffers[currentFrame], 0, 1, &scissor);
    VkBuffer vertexBuffers[] = { this->vertexBuffer.buffer };
    VkDeviceSize offsets[] = { 0 };
    vkCmdBindVertexBuffers(
    commandBuffers[currentFrame], 0, 1, vertexBuffers, offsets);
    vkCmdBindIndexBuffer(commandBuffers[currentFrame], this->indexBuffer.buffer,
    0, VK_INDEX_TYPE_UINT16);
    vkCmdBindDescriptorSets(commandBuffers[currentFrame],
    VK_PIPELINE_BIND_POINT_GRAPHICS, this->pipelineLayout, 0, 1,
    &this->descriptorSets[currentFrame], 0, nullptr);
    vkCmdDrawIndexed(commandBuffers[currentFrame],
    static_cast<uint32_t>(this->indices.size()), 1, 0, 0, 0);
}

update()

void Chronos::Engine::TexturedRectangle::update ( uint32_t  currentFrame )

overridevirtual

Updates the object for the current frame.

This pure virtual method must be implemented by derived classes to perform any updates required for the object during each frame. The currentFrame parameter represents the index of the current frame in the application.

Parameters

currentFrame

Index of the current frame.

Implements Chronos::Engine::Object.

Definition at line 54 of file TexturedRectangle.cpp.

{
    uniformBuffers[currentFrame].update(swapChain->swapChainExtent, params.x,
    params.y, params.rotation, params.xSize, params.ySize);
}

Member Data Documentation

indexBuffer

Chronos::Engine::Buffer Chronos::Engine::TexturedRectangle::indexBuffer

The index buffer that is used to store the indices.

Definition at line 64 of file TexturedRectangle.hpp.

indices

const std::vector<uint16_t> Chronos::Engine::TexturedRectangle::indices = std::vector<uint16_t> { 0, 1, 2, 2, 3, 0 }

Definition at line 41 of file TexturedRectangle.hpp.

{ 0, 1, 2, 2, 3, 0 };

params

Chronos::Manager::ShapeParams Chronos::Engine::TexturedRectangle::params

Definition at line 52 of file TexturedRectangle.hpp.

texture

Chronos::Engine::Texture Chronos::Engine::TexturedRectangle::texture

Definition at line 51 of file TexturedRectangle.hpp.

vertexBuffer

Chronos::Engine::Buffer Chronos::Engine::TexturedRectangle::vertexBuffer

The vertex buffer that is used to store the vertices.

Definition at line 56 of file TexturedRectangle.hpp.

vertices

const std::vector<TexturedVertex> Chronos::Engine::TexturedRectangle::vertices

Initial value:

= std::vector<TexturedVertex> { { { -0.5f, -0.5f },
                        { 1.0f, 0.0f } },
          { { 0.5f, -0.5f }, { 0.0f, 0.0f } },
          { { 0.5f, 0.5f }, { 0.0f, 1.0f } },
          { { -0.5f, 0.5f }, { 1.0f, 1.0f } } }

Definition at line 44 of file TexturedRectangle.hpp.

                                    { { { -0.5f, -0.5f },
                        { 1.0f, 0.0f } },
          { { 0.5f, -0.5f }, { 0.0f, 0.0f } },
          { { 0.5f, 0.5f }, { 0.0f, 1.0f } },
          { { -0.5f, 0.5f }, { 1.0f, 1.0f } } };

---

The documentation for this class was generated from the following files:

• Source/Rendering/Objects/Rectangle/TexturedRectangle.hpp
• Source/Rendering/Objects/Rectangle/TexturedRectangle.cpp
