Chronos::Engine::Buffer Class Reference

Used to store buffers in GPU. More...

#include <buffers.hpp>

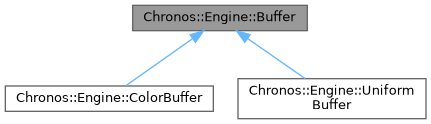

Inheritance diagram for Chronos::Engine::Buffer:

Collaboration diagram for Chronos::Engine::Buffer:

Public Member Functions
void	create (Chronos::Engine::Device device, VkBufferUsageFlags flags, VkMemoryPropertyFlags properties)
	This is used to initialize the buffer.
void	copy (void *data, VkCommandPool commandPool)
	Copies the data to the buffer.
void	destroy ()
	Destroys the buffer and frees the memory.

Public Attributes
VkBuffer	buffer
	The buffer.
VkDeviceSize	size
	The size of the buffer.
VkDeviceMemory	memory
	The device memory of the buffer.

Private Attributes
Chronos::Engine::Device	device
	The device on which the buffer is stored.

Detailed Description

Used to store buffers in GPU.

It contains the buffer, the size and the memory variables needed for this, along with the appropriate functions to use them.

Definition at line 39 of file buffers.hpp.

Member Function Documentation

copy()

void Chronos::Engine::Buffer::copy	(	void *	data,
		VkCommandPool	commandPool
	)

Copies the data to the buffer.

It does this by coping the data into a temporary staging buffer and then copying it to the final buffer.

Parameters

data	The data to copy.
commandPool	The command pool to use for the staging buffer and commands during the copy.

Definition at line 39 of file buffers.cpp.

{
    // copies the data to a staging buffer in order to copy to device buffer
    void* data;
    VkBuffer stagingBuffer;
    VkDeviceMemory stagingBufferMemory;
    Chronos::Engine::createBuffer(device, size,
    VK_BUFFER_USAGE_TRANSFER_SRC_BIT,
    VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT
        | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT,
    &stagingBuffer, &stagingBufferMemory);
    vkMapMemory(device.device, stagingBufferMemory, 0, size, 0, &data);
    memcpy(data, inputData, (size_t)size);
    vkUnmapMemory(device.device, stagingBufferMemory);
    Chronos::Engine::copyBuffer(
    device, stagingBuffer, buffer, size, commandPool);
    vkDestroyBuffer(device.device, stagingBuffer, nullptr);
    vkFreeMemory(device.device, stagingBufferMemory, nullptr);
    LOG(3,
    "Data [" + std::to_string((uint64_t)buffer)
        + "] copied to device buffer [" + std::to_string((uint64_t)buffer)
        + "]")
}

References Chronos::Engine::copyBuffer(), Chronos::Engine::createBuffer(), and LOG.

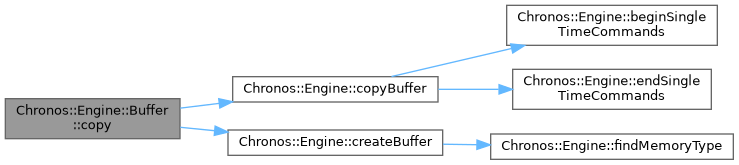

Here is the call graph for this function:

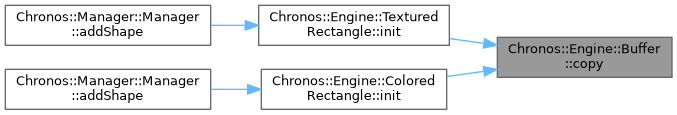

Here is the caller graph for this function:

create()

void Chronos::Engine::Buffer::create	(	Chronos::Engine::Device	device,
		VkBufferUsageFlags	flags,
		VkMemoryPropertyFlags	properties
	)

This is used to initialize the buffer.

It is calls the createBuffer function for this purpose and stores the results.

Parameters

device	The device on which the buffer should be stored.
flags	The flags to use for the buffer. @params properties The memory properties to use for the buffer.

Definition at line 27 of file buffers.cpp.

{
    this->device = device;
    Chronos::Engine::createBuffer(
    this->device, size, flags, properties, &buffer, &memory);
    LOG(2,
    "Buffer [" + std::to_string((uint64_t)this->buffer)
        + "] created for buffer object [" + std::to_string((uint64_t)this)
        + "]")
}

References buffer, Chronos::Engine::createBuffer(), device, LOG, memory, and size.

Here is the call graph for this function:

Here is the caller graph for this function:

destroy()

void Chronos::Engine::Buffer::destroy

(

)

Destroys the buffer and frees the memory.

Definition at line 63 of file buffers.cpp.

{
    vkDestroyBuffer(device.device, buffer, nullptr);
    vkFreeMemory(device.device, memory, nullptr);
    LOG(2,
    "Buffer [" + std::to_string((uint64_t)buffer)
        + "] destroyed on device ["
        + std::to_string((uint64_t)device.device) + "]")
}

References LOG.

Member Data Documentation

buffer

VkBuffer Chronos::Engine::Buffer::buffer

The buffer.

Definition at line 78 of file buffers.hpp.

device

Chronos::Engine::Device Chronos::Engine::Buffer::device

private

The device on which the buffer is stored.

Definition at line 94 of file buffers.hpp.

memory

VkDeviceMemory Chronos::Engine::Buffer::memory

The device memory of the buffer.

Definition at line 88 of file buffers.hpp.

size

VkDeviceSize Chronos::Engine::Buffer::size

The size of the buffer.

Definition at line 83 of file buffers.hpp.

---

The documentation for this class was generated from the following files:

• Source/Rendering/buffers.hpp
• Source/Rendering/buffers.cpp
