device.cpp File Reference

#include <set>
#include "logging.hpp"
#include "helper.hpp"
#include "swapchain.hpp"

Include dependency graph for device.cpp:

Go to the source code of this file.

Functions
static bool	checkDeviceExtensionSupport (VkPhysicalDevice device)
	Checks if the physical device that we provide it supports the extestions we need. This is used to check if the physical device that we provide it supports the extensions that we need.
static bool	isDeviceSuitable (VkPhysicalDevice device, VkSurfaceKHR surface)
	Checks if the physical device that we provide it is suitable for our needs.
VkSampleCountFlagBits	getMaxUsableSampleCount (VkPhysicalDevice physicalDevice)
	Gets the maxmimum supported MSAA sample count.

Function Documentation

checkDeviceExtensionSupport()

static bool checkDeviceExtensionSupport ( VkPhysicalDevice  device )

inlinestatic

Checks if the physical device that we provide it supports the extestions we need. This is used to check if the physical device that we provide it supports the extensions that we need.

Parameters

device

The physical device to check.

Returns

Whether the physical device supports the extensions that we need.

Definition at line 47 of file device.cpp.

{
    uint32_t extensionCount;
    vkEnumerateDeviceExtensionProperties(
    device, nullptr, &extensionCount, nullptr);

    std::vector<VkExtensionProperties> availableExtensions(extensionCount);
    vkEnumerateDeviceExtensionProperties(
    device, nullptr, &extensionCount, availableExtensions.data());

    std::set<std::string> requiredExtensions(
    Chronos::Engine::deviceExtensions.begin(),
    Chronos::Engine::deviceExtensions.end());

    for (const auto& extension : availableExtensions) {
    requiredExtensions.erase(extension.extensionName);
    }

    return requiredExtensions.empty();
}

References Chronos::Engine::deviceExtensions.

Here is the caller graph for this function:

getMaxUsableSampleCount()

VkSampleCountFlagBits getMaxUsableSampleCount

(

VkPhysicalDevice

physicalDevice

)

Gets the maxmimum supported MSAA sample count.

This gets the maximum supported MSAA sample count for the physical device that we provide it.

Parameters

physicalDevice

The physical device to get the maxium supported MSAA sample count for.

Returns

The maxium supported MSAA sample count.

Definition at line 113 of file device.cpp.

{
    // used to get max MSAA count
    VkPhysicalDeviceProperties physicalDeviceProperties;
    vkGetPhysicalDeviceProperties(physicalDevice, &physicalDeviceProperties);

    VkSampleCountFlags counts
    = physicalDeviceProperties.limits.framebufferColorSampleCounts;
    if (counts & VK_SAMPLE_COUNT_64_BIT) {
    return VK_SAMPLE_COUNT_64_BIT;
    }
    if (counts & VK_SAMPLE_COUNT_32_BIT) {
    return VK_SAMPLE_COUNT_32_BIT;
    }
    if (counts & VK_SAMPLE_COUNT_16_BIT) {
    return VK_SAMPLE_COUNT_16_BIT;
    }
    if (counts & VK_SAMPLE_COUNT_8_BIT) {
    return VK_SAMPLE_COUNT_8_BIT;
    }
    if (counts & VK_SAMPLE_COUNT_4_BIT) {
    return VK_SAMPLE_COUNT_4_BIT;
    }
    if (counts & VK_SAMPLE_COUNT_2_BIT) {
    return VK_SAMPLE_COUNT_2_BIT;
    }
    return VK_SAMPLE_COUNT_1_BIT;
}

Here is the caller graph for this function:

isDeviceSuitable()

static bool isDeviceSuitable ( VkPhysicalDevice  device, VkSurfaceKHR  surface  )

inlinestatic

Checks if the physical device that we provide it is suitable for our needs.

For a physical device to be suitable, it must support the extensions that we need, and it must be capable of rendering to the surface that we provide it along with rendering the frames.

Parameters

physicalDevice	The physical device to check.
surface	The surface to which we are rendering.

Returns

Whether the physical device is suitable for our needs.

Definition at line 81 of file device.cpp.

{
    // check if the device has the required queue families
    Chronos::Engine::QueueFamilyIndices indices
    = Chronos::Engine::findQueueFamilies(device, surface);
    bool extensionsSupported = checkDeviceExtensionSupport(device);

    bool swapChainAdequate = false;
    if (extensionsSupported) {
    Chronos::Engine::SwapChainSupportDetails swapChainSupport
        = Chronos::Engine::querySwapChainSupport(device, surface);
    swapChainAdequate = !swapChainSupport.formats.empty()
        && !swapChainSupport.presentModes.empty();
    }

    VkPhysicalDeviceFeatures supportedFeatures;
    vkGetPhysicalDeviceFeatures(device, &supportedFeatures);
    return indices.isComplete() && extensionsSupported && swapChainAdequate
    && supportedFeatures.samplerAnisotropy;
}

References checkDeviceExtensionSupport(), Chronos::Engine::findQueueFamilies(), Chronos::Engine::SwapChainSupportDetails::formats, Chronos::Engine::QueueFamilyIndices::isComplete(), Chronos::Engine::SwapChainSupportDetails::presentModes, and Chronos::Engine::querySwapChainSupport().

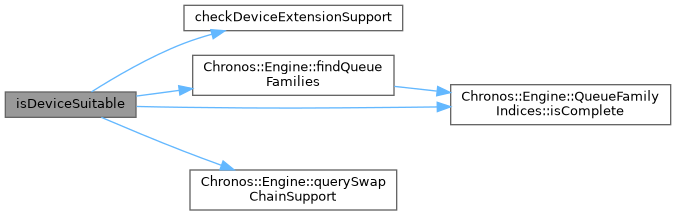

Here is the call graph for this function:

Here is the caller graph for this function:
