Chronos::Editor::EditorRenderer Class Reference

#include <editorRenderer.hpp>

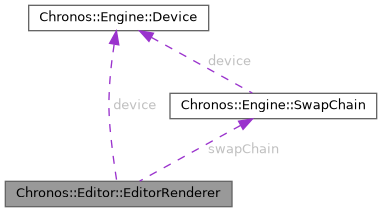

Collaboration diagram for Chronos::Editor::EditorRenderer:

Public Member Functions
void	init (Chronos::Engine::Device *device, GLFWwindow *window, Chronos::Engine::SwapChain *swapChain, VkInstance instance, VkSurfaceKHR surface)
void	render (uint32_t currentFrame, uint32_t imageIndex, float bgColor[3])
void	destroy ()
void	update ()
void	recreate ()
void	changeMsaa ()
void	cleanup ()
void	renderAdditionalViewports ()

Public Attributes
Chronos::Engine::Device *	device
Chronos::Engine::SwapChain *	swapChain
VkSurfaceKHR	surface
GLFWwindow *	window
VkCommandPool	commandPool
VkDescriptorPool	descriptorPool
std::vector< VkCommandBuffer >	commandBuffers
std::vector< VkFramebuffer >	framebuffers
VkRenderPass	renderPass
void(*	addElements )()

Detailed Description

Definition at line 28 of file editorRenderer.hpp.

Member Function Documentation

changeMsaa()

void Chronos::Editor::EditorRenderer::changeMsaa

(

)

Definition at line 198 of file editorRenderer.cpp.

{
    vkDestroyRenderPass(device->device, renderPass, nullptr);
    renderPass = Chronos::Engine::createRenderPass(*device, *swapChain,
    VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL,
    VK_IMAGE_LAYOUT_PRESENT_SRC_KHR,
    VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL, false, false, true);
    recreate();
}

References Chronos::Engine::createRenderPass().

Here is the call graph for this function:

cleanup()

void Chronos::Editor::EditorRenderer::cleanup

(

)

Definition at line 172 of file editorRenderer.cpp.

{
    for (auto framebuffer : framebuffers)
    vkDestroyFramebuffer(device->device, framebuffer, nullptr);
    LOG(3, "EditorRenderer cleaned up")
}

References LOG.

destroy()

void Chronos::Editor::EditorRenderer::destroy

(

)

Definition at line 126 of file editorRenderer.cpp.

{
    ImGui_ImplVulkan_Shutdown();
    vkDestroyRenderPass(device->device, renderPass, nullptr);
    for (auto framebuffer : framebuffers)
    vkDestroyFramebuffer(device->device, framebuffer, nullptr);
    vkDestroyCommandPool(device->device, commandPool, nullptr);
    vkDestroyDescriptorPool(device->device, descriptorPool, nullptr);
    LOG(3, "EditorRenderer destroyed")
}

References LOG.

init()

void Chronos::Editor::EditorRenderer::init	(	Chronos::Engine::Device *	device,
		GLFWwindow *	window,
		Chronos::Engine::SwapChain *	swapChain,
		VkInstance	instance,
		VkSurfaceKHR	surface
	)

Definition at line 28 of file editorRenderer.cpp.

{
    this->device = device;
    this->swapChain = swapChain;
    this->surface = surface;
    this->window = window;

    renderPass = Chronos::Engine::createRenderPass(*device, *swapChain,
    VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL,
    VK_IMAGE_LAYOUT_PRESENT_SRC_KHR,
    VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL, false, false, true);
    framebuffers = Chronos::Engine::createFramebuffer(
    *device, *swapChain, renderPass, false);
    // Setup Dear ImGui context
    IMGUI_CHECKVERSION();
    ImGui::CreateContext();
    ImGuiIO& io = ImGui::GetIO();
    (void)io;
    io.ConfigFlags |= ImGuiConfigFlags_NavEnableKeyboard;
    io.ConfigFlags |= ImGuiConfigFlags_DockingEnable;
#ifdef WIN32
    io.ConfigFlags |= ImGuiConfigFlags_ViewportsEnable;
    LOG(3, "Viewports enabled")
#endif
    ImGui::StyleColorsDark();

    std::array<VkDescriptorPoolSize, 1> poolSizes {};
    poolSizes[0].type = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
    poolSizes[0].descriptorCount = static_cast<uint32_t>(MAX_FRAMES_IN_FLIGHT);

    VkDescriptorPoolSize pool_sizes[]
    = { { VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER, 100 } };
    VkDescriptorPoolCreateInfo pool_info = {};
    pool_info.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_POOL_CREATE_INFO;
    pool_info.flags = VK_DESCRIPTOR_POOL_CREATE_FREE_DESCRIPTOR_SET_BIT;
    pool_info.maxSets = 100;
    pool_info.poolSizeCount = (uint32_t)IM_ARRAYSIZE(pool_sizes);
    pool_info.pPoolSizes = pool_sizes;
    vkCreateDescriptorPool(
    device->device, &pool_info, nullptr, &descriptorPool);

    ImGui_ImplGlfw_InitForVulkan(window, true);
    ImGui_ImplVulkan_InitInfo init_info = {};
    init_info.Instance = instance;
    init_info.PhysicalDevice = device->physicalDevice;
    init_info.Device = device->device;
    init_info.QueueFamily
    = Chronos::Engine::findQueueFamilies(device->physicalDevice, surface)
          .graphicsFamily.value();
    init_info.Queue = device->graphicsQueue;
    init_info.PipelineCache = VK_NULL_HANDLE;
    init_info.DescriptorPool = descriptorPool;
    init_info.RenderPass = renderPass;
    init_info.Allocator = nullptr;
    init_info.MinImageCount = MAX_FRAMES_IN_FLIGHT;
    init_info.ImageCount = MAX_FRAMES_IN_FLIGHT;
    init_info.MSAASamples = VK_SAMPLE_COUNT_1_BIT;
    init_info.CheckVkResultFn = nullptr; // add a fucntion to this
    ImGui_ImplVulkan_Init(&init_info);

    VkCommandPoolCreateInfo commandPoolCreateInfo = {};
    commandPoolCreateInfo.sType = VK_STRUCTURE_TYPE_COMMAND_POOL_CREATE_INFO;
    commandPoolCreateInfo.queueFamilyIndex
    = Chronos::Engine::findQueueFamilies(device->physicalDevice, surface)
          .graphicsFamily.value();
    commandPoolCreateInfo.flags
    = VK_COMMAND_POOL_CREATE_RESET_COMMAND_BUFFER_BIT;

    if (vkCreateCommandPool(
        device->device, &commandPoolCreateInfo, nullptr, &commandPool)
    != VK_SUCCESS) {
    LOG(1, "Could not create graphics command pool")
    throw std::runtime_error("Could not create graphics command pool");
    }

    VkCommandBuffer command_buffer
    = Chronos::Engine::beginSingleTimeCommands(commandPool, device->device);
    ImGui_ImplVulkan_CreateFontsTexture();
    Chronos::Engine::endSingleTimeCommands(
    &command_buffer, *device, commandPool);

    commandBuffers.resize(swapChain->swapChainImageViews.size());
    VkCommandBufferAllocateInfo allocInfo {};
    allocInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO;
    allocInfo.commandPool = commandPool;
    allocInfo.level = VK_COMMAND_BUFFER_LEVEL_PRIMARY;
    allocInfo.commandBufferCount = static_cast<uint32_t>(commandBuffers.size());
    if (vkAllocateCommandBuffers(
        device->device, &allocInfo, commandBuffers.data())
    != VK_SUCCESS) {
    LOG(1, "failed to allocate command buffers!")
    throw std::runtime_error("failed to allocate command buffers!");
    }
    LOG(3, "EditorRenderer initialized")
}

References Chronos::Engine::beginSingleTimeCommands(), commandBuffers, commandPool, Chronos::Engine::createFramebuffer(), Chronos::Engine::createRenderPass(), descriptorPool, device, Chronos::Engine::Device::device, Chronos::Engine::endSingleTimeCommands(), Chronos::Engine::findQueueFamilies(), framebuffers, Chronos::Engine::QueueFamilyIndices::graphicsFamily, Chronos::Engine::Device::graphicsQueue, LOG, MAX_FRAMES_IN_FLIGHT, Chronos::Engine::Device::physicalDevice, renderPass, surface, swapChain, Chronos::Engine::SwapChain::swapChainImageViews, and window.

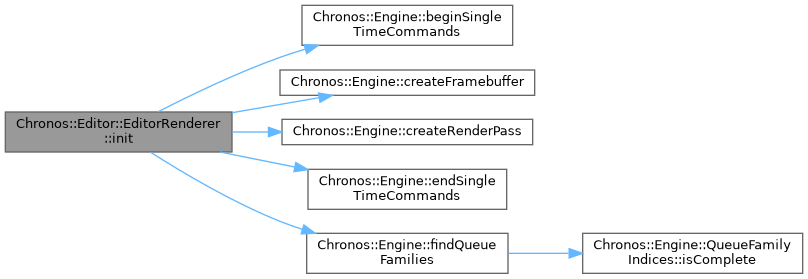

Here is the call graph for this function:

recreate()

void Chronos::Editor::EditorRenderer::recreate

(

)

Definition at line 179 of file editorRenderer.cpp.

{
    cleanup();
    framebuffers = Chronos::Engine::createFramebuffer(
    *device, *swapChain, renderPass, false);
    LOG(3, "EditorRenderer recreated")
}

References Chronos::Engine::createFramebuffer(), and LOG.

Here is the call graph for this function:

render()

void Chronos::Editor::EditorRenderer::render	(	uint32_t	currentFrame,
		uint32_t	imageIndex,
		float	bgColor[3]
	)

Definition at line 147 of file editorRenderer.cpp.

{
    vkResetCommandBuffer(commandBuffers[currentFrame], 0);
    VkCommandBufferBeginInfo beginInfo {};
    beginInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO;
    VkClearValue clearColor
    = { { { bgColor[0], bgColor[1], bgColor[2], 1.0f } } };
    vkBeginCommandBuffer(commandBuffers[currentFrame], &beginInfo);
    VkRenderPassBeginInfo info = {};
    info.sType = VK_STRUCTURE_TYPE_RENDER_PASS_BEGIN_INFO;
    info.renderPass = renderPass;
    info.framebuffer = framebuffers[imageIndex];
    info.renderArea.extent = swapChain->swapChainExtent;
    info.clearValueCount = 1;
    info.pClearValues = &clearColor;
    vkCmdBeginRenderPass(
    commandBuffers[currentFrame], &info, VK_SUBPASS_CONTENTS_INLINE);
    ImGui_ImplVulkan_RenderDrawData(
    ImGui::GetDrawData(), commandBuffers[currentFrame]);
    vkCmdEndRenderPass(commandBuffers[currentFrame]);
    vkEndCommandBuffer(commandBuffers[currentFrame]);
    LOG(4, "EditorRenderer rendered")
}

References LOG.

renderAdditionalViewports()

void Chronos::Editor::EditorRenderer::renderAdditionalViewports

(

)

Definition at line 187 of file editorRenderer.cpp.

{
#ifdef WIN32
    if (ImGui::GetIO().ConfigFlags & ImGuiConfigFlags_ViewportsEnable) {
    ImGui::UpdatePlatformWindows();
    ImGui::RenderPlatformWindowsDefault();
    }
    LOG(4, "Rendered additional viewports")
#endif
}

References LOG.

update()

void Chronos::Editor::EditorRenderer::update

(

)

Definition at line 137 of file editorRenderer.cpp.

{
    ImGui_ImplVulkan_NewFrame();
    ImGui_ImplGlfw_NewFrame();
    ImGui::NewFrame();
    this->addElements();
    ImGui::Render();
    LOG(4, "EditorRenderer updated")
}

References addElements(), and LOG.

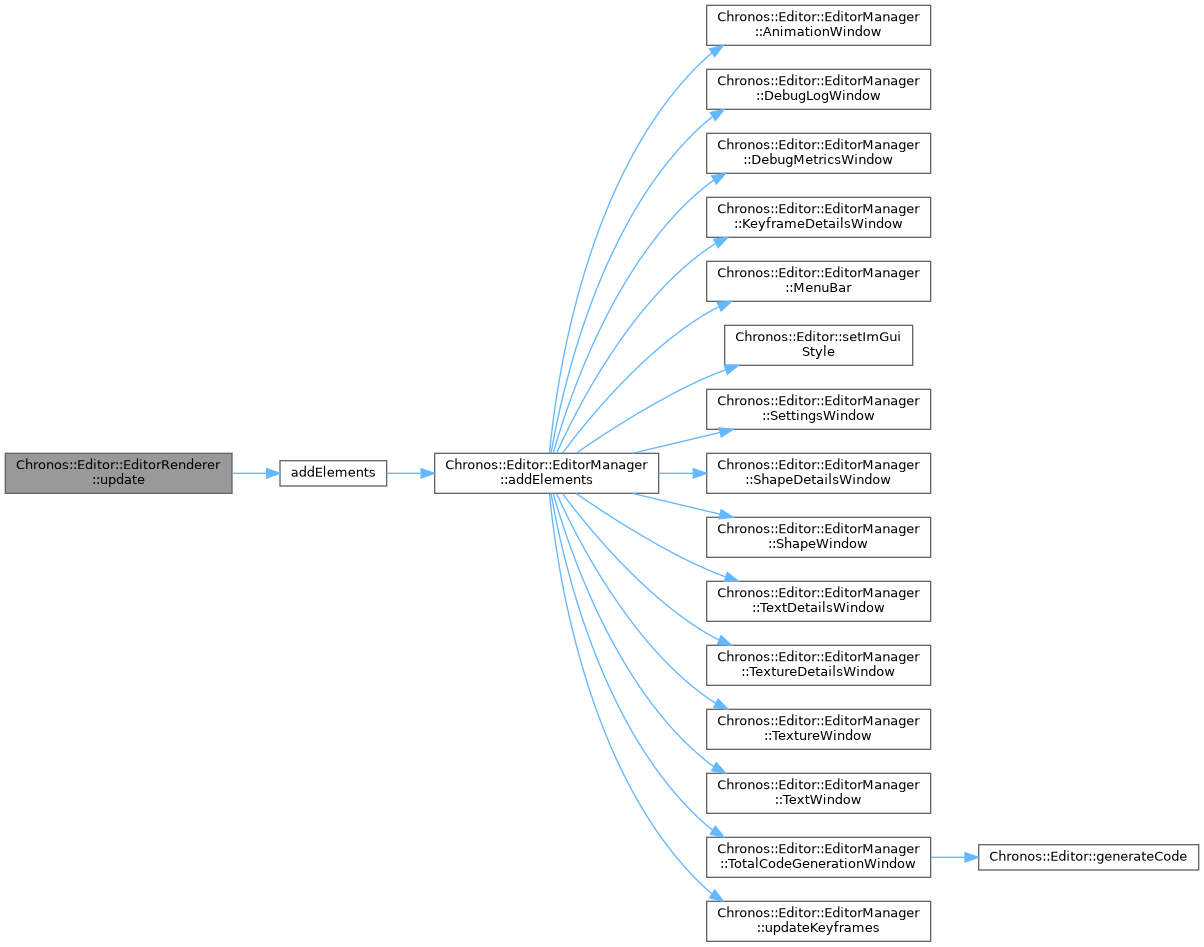

Here is the call graph for this function:

Member Data Documentation

addElements

void(* Chronos::Editor::EditorRenderer::addElements) ()

Definition at line 52 of file editorRenderer.hpp.

commandBuffers

std::vector<VkCommandBuffer> Chronos::Editor::EditorRenderer::commandBuffers

Definition at line 37 of file editorRenderer.hpp.

commandPool

VkCommandPool Chronos::Editor::EditorRenderer::commandPool

Definition at line 35 of file editorRenderer.hpp.

descriptorPool

VkDescriptorPool Chronos::Editor::EditorRenderer::descriptorPool

Definition at line 36 of file editorRenderer.hpp.

device

Chronos::Engine::Device* Chronos::Editor::EditorRenderer::device

Definition at line 30 of file editorRenderer.hpp.

framebuffers

std::vector<VkFramebuffer> Chronos::Editor::EditorRenderer::framebuffers

Definition at line 38 of file editorRenderer.hpp.

renderPass

VkRenderPass Chronos::Editor::EditorRenderer::renderPass

Definition at line 39 of file editorRenderer.hpp.

surface

VkSurfaceKHR Chronos::Editor::EditorRenderer::surface

Definition at line 32 of file editorRenderer.hpp.

swapChain

Chronos::Engine::SwapChain* Chronos::Editor::EditorRenderer::swapChain

Definition at line 31 of file editorRenderer.hpp.

window

GLFWwindow* Chronos::Editor::EditorRenderer::window

Definition at line 33 of file editorRenderer.hpp.

---

The documentation for this class was generated from the following files:

• Source/Editor/editorRenderer.hpp
• Source/Editor/editorRenderer.cpp
