Chronos::Editor::EditorManager Class Reference

#include <editorManager.hpp>

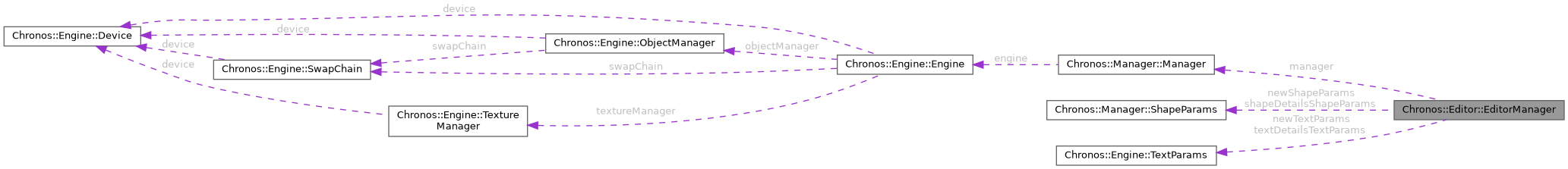

Collaboration diagram for Chronos::Editor::EditorManager:

Public Member Functions
void	init (Chronos::Manager::Manager *manager)
void	addElements ()

Private Member Functions
void	MenuBar ()
void	ShapeWindow ()
void	TextureWindow ()
void	TextWindow ()
void	AnimationWindow ()
void	SettingsWindow ()
void	TotalCodeGenerationWindow ()
void	ShapeDetailsWindow ()
void	TextureDetailsWindow ()
void	TextDetailsWindow ()
void	KeyframeDetailsWindow ()
void	DebugMetricsWindow ()
void	DebugLogWindow ()
int	getKeyframeNo (float *valuePointer)
bool	doesKeyframeExist (float *valuePointer)
void	keyframeCheckbox (float *valuePointer, std::string name)
void	updateKeyframes ()

Private Attributes
Chronos::Manager::Manager *	manager
bool	pinMenuBar = true
bool	showShapeWindow = false
bool	showTextureWindow = false
bool	showTextWindow = false
bool	showAnimationWindow = false
bool	showSettingsWindow = false
bool	showGeneratedCodeWindow = false
bool	showShapeDetailsWindow = false
bool	showTextureDetailsWindow = false
bool	showTextDetailsWindow = false
bool	showKeyframeDetailsWindow = false
bool	showDebugMetricsWindow = false
bool	showDebugLogWindow = false
Chronos::Manager::ShapeParams	newShapeParams
int	newShapeFill = 0
int	currentShapeTextureSelection = 0
char	currentShapeTextureName [200] = "Select Texture"
int	currentShapeSelection = 0
char	newTexturePath [200]
char	newTextureName [200]
int	currentTextureSelection = 0
Chronos::Engine::TextParams	newTextParams
std::string	currentFontSelection = "consolas"
int	currentFontSizeSelection = 6
int	currentTextSelection = 0
Chronos::Manager::ShapeParams	shapeDetailsShapeParams
int	shapeDetailsShapeNo = 0
Chronos::Engine::TextParams	textDetailsTextParams
int	textDetailsTextNo = 0
int	textureDetailsCurrentSelection = 0
char	windowTitle [200] = GAME_NAME
std::string	presentMode = "mailbox"
float	bgColor [3] = { 0, 0, 0 }
bool	fullScreen = false
bool	isWindowFullscreen = false
std::string	msaaSamples = "1"
std::unordered_map< float *, int >	floatPointerToKeyframeNo
float *	currentKeyframeValuePointer = nullptr

Detailed Description

Definition at line 27 of file editorManager.hpp.

Member Function Documentation

addElements()

void Chronos::Editor::EditorManager::addElements

(

)

Definition at line 29 of file editorManager.cpp.

{
    Chronos::Editor::setImGuiStyle();
    this->MenuBar();
    this->ShapeWindow();
    this->TextureWindow();
    this->TextWindow();
    this->AnimationWindow();
    this->SettingsWindow();
    this->TotalCodeGenerationWindow();
    this->ShapeDetailsWindow();
    this->TextureDetailsWindow();
    this->TextDetailsWindow();
    this->KeyframeDetailsWindow();
    this->DebugMetricsWindow();
    this->DebugLogWindow();
#ifdef CHRONOS_PROFILING
    this->ProfilingWindow();
#endif
    this->updateKeyframes();

    LOG(4, "Elements added to the editor.")
}

References AnimationWindow(), DebugLogWindow(), DebugMetricsWindow(), KeyframeDetailsWindow(), LOG, MenuBar(), Chronos::Editor::setImGuiStyle(), SettingsWindow(), ShapeDetailsWindow(), ShapeWindow(), TextDetailsWindow(), TextureDetailsWindow(), TextureWindow(), TextWindow(), TotalCodeGenerationWindow(), and updateKeyframes().

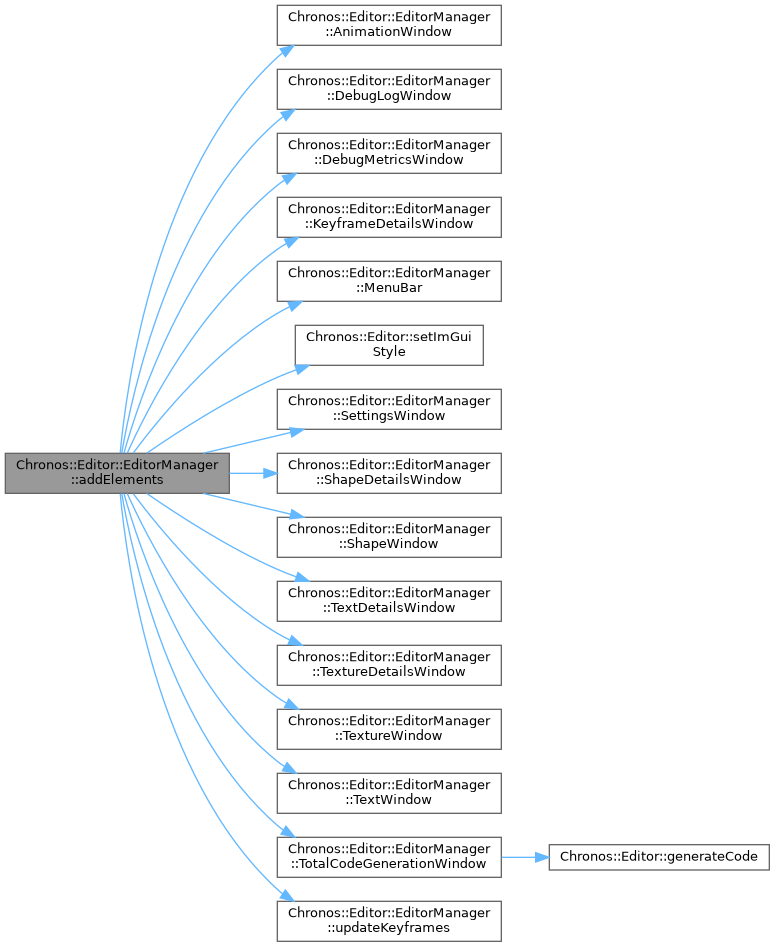

Here is the call graph for this function:

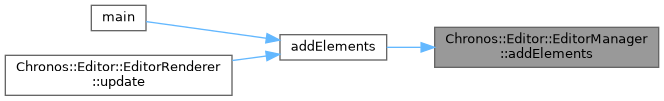

Here is the caller graph for this function:

AnimationWindow()

void Chronos::Editor::EditorManager::AnimationWindow ( )

private

Definition at line 640 of file editorManager.cpp.

{
    if (this->showAnimationWindow) {
    ImGui::Begin("Animation", &this->showAnimationWindow);
    ImGui::SeparatorText("Animation");
    ImGui::End();
    }
}

Here is the caller graph for this function:

DebugLogWindow()

void Chronos::Editor::EditorManager::DebugLogWindow ( )

private

Definition at line 604 of file editorManager.cpp.

{
    if (this->showDebugLogWindow) {
    ImGui::ShowDebugLogWindow(&this->showDebugLogWindow);
    }
}

Here is the caller graph for this function:

DebugMetricsWindow()

void Chronos::Editor::EditorManager::DebugMetricsWindow ( )

private

Definition at line 597 of file editorManager.cpp.

{
    if (this->showDebugMetricsWindow) {
    ImGui::ShowMetricsWindow(&this->showDebugMetricsWindow);
    }
}

Here is the caller graph for this function:

doesKeyframeExist()

bool Chronos::Editor::EditorManager::doesKeyframeExist ( float *  valuePointer )

private

Definition at line 675 of file editorManager.cpp.

{
    if (this->getKeyframeNo(valuePointer) == -1)
    return false;
    return true;
}

getKeyframeNo()

int Chronos::Editor::EditorManager::getKeyframeNo ( float *  valuePointer )

private

Definition at line 662 of file editorManager.cpp.

{
    if (!valuePointer) {
    throw std::runtime_error("Value Pointer is null");
    }
    if (this->floatPointerToKeyframeNo.find(valuePointer)
    == this->floatPointerToKeyframeNo.end()) {
    return -1;
    } else {
    return this->floatPointerToKeyframeNo[valuePointer];
    }
}

init()

void Chronos::Editor::EditorManager::init ( Chronos::Manager::Manager *  manager )

inline

Definition at line 29 of file editorManager.hpp.

    {
        this->manager = manager;
    }

References manager.

Here is the caller graph for this function:

keyframeCheckbox()

void Chronos::Editor::EditorManager::keyframeCheckbox ( float *  valuePointer, std::string  name  )

private

Definition at line 682 of file editorManager.cpp.

{
    bool isAnimated = this->doesKeyframeExist(valuePointer);
    bool currentChange = isAnimated;
    ImGui::Checkbox(name.c_str(), &currentChange);
    if (currentChange != isAnimated) {
    LOG(3,
        "Animate checkbox changed for valuePointer ["
        + std::to_string((long long)valuePointer) + "]");
    if (currentChange) {
        int keyframeNo = this->manager->addKeyframeVariable(
        { { 0, *valuePointer }, { 100, *valuePointer } });
        this->floatPointerToKeyframeNo[valuePointer] = keyframeNo;
        LOG(3,
        "Added keyframe for valuePointer ["
            + std::to_string((long long)valuePointer)
            + "] with keyframeNo [" + std::to_string(keyframeNo) + "]")
    } else {
        int keyframeNo = this->getKeyframeNo(valuePointer);
        if (keyframeNo == -1) {
        throw std::runtime_error("Could not find keyframe number!!!");
        }
        this->manager->removeKeyframeVariable(keyframeNo);
        this->floatPointerToKeyframeNo.erase(valuePointer);
        LOG(3,
        "Removed keyframe for valuePointer ["
            + std::to_string((long long)valuePointer)
            + "] with keyframeNo [" + std::to_string(keyframeNo) + "]")
    }
    }
    if (currentChange) {
    ImGui::SameLine();
    if (ImGui::Button("Keyframe Details")) {
        this->showKeyframeDetailsWindow = true;
        this->currentKeyframeValuePointer = valuePointer;
    }
    }
}

References LOG.

KeyframeDetailsWindow()

void Chronos::Editor::EditorManager::KeyframeDetailsWindow ( )

private

Definition at line 649 of file editorManager.cpp.

{
    if (this->showKeyframeDetailsWindow) {
    ImGui::Begin("Keyframe Details", &this->showKeyframeDetailsWindow);
    ImGui::SeparatorText("Keyframe Details");
    ImGui::Text("Current Value pointer: %p",
        (void*)this->currentKeyframeValuePointer);
    int keyframeNo = this->getKeyframeNo(this->currentKeyframeValuePointer);
    ImGui::Text("Keyframe Number: %d", keyframeNo);
    ImGui::End();
    }
}

Here is the caller graph for this function:

MenuBar()

void Chronos::Editor::EditorManager::MenuBar ( )

private

Definition at line 53 of file editorManager.cpp.

{
    if (this->pinMenuBar) {
    if (ImGui::BeginMainMenuBar()) {
        ImGui::MenuItem("Shape", NULL, &this->showShapeWindow);
        ImGui::MenuItem("Texture", NULL, &this->showTextureWindow);
        ImGui::MenuItem("Text", NULL, &this->showTextWindow);
        ImGui::MenuItem("Animation", NULL, &this->showAnimationWindow);
        ImGui::MenuItem("Settings", NULL, &this->showSettingsWindow);
        ImGui::MenuItem(
        "Generated Code", NULL, &this->showGeneratedCodeWindow);
#ifdef CHRONOS_PROFILING
        ImGui::MenuItem("Profiling", NULL, &this->showProfilingWindow);
#endif
        ImGui::EndMainMenuBar();
    }
    } else {
    ImGui::Begin("Editor", nullptr, ImGuiWindowFlags_MenuBar);
    if (ImGui::BeginMenuBar()) {
        ImGui::MenuItem("Shape", NULL, &this->showShapeWindow);
        ImGui::MenuItem("Texture", NULL, &this->showTextureWindow);
        ImGui::MenuItem("Text", NULL, &this->showTextWindow);
        ImGui::MenuItem("Animation", NULL, &this->showAnimationWindow);
        ImGui::MenuItem("Settings", NULL, &this->showSettingsWindow);
        ImGui::MenuItem(
        "Generated Code", NULL, &this->showGeneratedCodeWindow);
        ImGui::EndMenuBar();
    }
    ImGui::End();
    }
}

Here is the caller graph for this function:

SettingsWindow()

void Chronos::Editor::EditorManager::SettingsWindow ( )

private

Definition at line 396 of file editorManager.cpp.

{
    if (this->showSettingsWindow) {
    ImGui::Begin("Settings", &this->showSettingsWindow);
    ImGui::SeparatorText("Build Information");
    ImGui::Text("Engine name: %s", "Chronos");
    ImGui::Text("Build Version: %d.%d.%d", CHRONOS_VERSION_MAJOR,
        CHRONOS_VERSION_MINOR, CHRONOS_VERSION_PATCH);
    ImGui::Text("Build Date: %s", __DATE__);
    ImGui::Text("Build Time: %s", __TIME__);

    ImGui::SeparatorText("Window Settings");
    ImGui::InputText("Window Title", this->windowTitle, 200);
    if (ImGui::Button("Update Window Title")) {
        glfwSetWindowTitle(this->manager->getWindow(), this->windowTitle);
        LOG(1,
        "Window title updated to [" + std::string(this->windowTitle)
            + "]")
    }
    ImGui::Checkbox("Make Window Fullscreen", &this->fullScreen);
    if (this->fullScreen && !this->isWindowFullscreen) {
        GLFWwindow* window = this->manager->getWindow();
        const GLFWvidmode* mode = glfwGetVideoMode(glfwGetPrimaryMonitor());
        glfwSetWindowMonitor(window, glfwGetPrimaryMonitor(), 0, 0,
        mode->width, mode->height, mode->refreshRate);
        this->isWindowFullscreen = true;
        LOG(1, "Window set to fullscreen")
    } else if (!this->fullScreen && this->isWindowFullscreen) {
        GLFWwindow* window = this->manager->getWindow();
        glfwSetWindowMonitor(window, nullptr, 0, 0, 800, 600, 0);
        this->isWindowFullscreen = false;
        LOG(1, "Window set to windowed mode")
    }

    ImGui::SeparatorText("Present Mode");
    if (ImGui::BeginCombo("Present Mode", this->presentMode.c_str())) {
        if (ImGui::Selectable("mailbox", this->presentMode == "mailbox")) {
        this->presentMode = "mailbox";
        }
        if (ImGui::Selectable(
            "immediate", this->presentMode == "immediate")) {
        this->presentMode = "immediate";
        }
        if (ImGui::Selectable("fifo", this->presentMode == "fifo")) {
        this->presentMode = "fifo";
        }
        if (ImGui::Selectable(
            "fifo_relaxed", this->presentMode == "fifo_relaxed")) {
        this->presentMode = "fifo_relaxed";
        }
        ImGui::EndCombo();
    }
    if (ImGui::Button("Update Present Mode")) {
        this->manager->changePresentMode(this->presentMode);
        LOG(1, "Present mode updated to [" + this->presentMode + "]")
    }

    ImGui::SeparatorText("MSAA Samples");
    std::vector<std::string> msaaSamples = this->manager->getMSAAModes();
    for (std::string sample : msaaSamples) {
        if (ImGui::Selectable(
            sample.c_str(), this->msaaSamples == sample)) {
        this->msaaSamples = sample;
        }
    }
    if (ImGui::Button("Update MSAA Samples")) {
        this->manager->changeMSAA(this->msaaSamples);
        LOG(1, "MSAA Samples updated to [" + this->msaaSamples + "]")
    }

    ImGui::SeparatorText("Background Color");
    ImGui::ColorEdit3("Background Color", this->bgColor);
    if (ImGui::Button("Update Background Color")) {
        this->manager->changeBackgroundColor(
        this->bgColor[0], this->bgColor[1], this->bgColor[2]);
        LOG(1,
        "Background color updated to ["
            + std::to_string(this->bgColor[0]) + ", "
            + std::to_string(this->bgColor[1]) + ", "
            + std::to_string(this->bgColor[2]) + "]")
    }

    ImGui::SeparatorText("ImGui Debug Settings");
    ImGui::Checkbox("Show Metrics", &this->showDebugMetricsWindow);
    ImGui::Checkbox("Show Log", &this->showDebugLogWindow);
    ImGui::Checkbox("Pin Menu Bar", &this->pinMenuBar);

    ImGui::End();
    }
}

References LOG.

Here is the caller graph for this function:

ShapeDetailsWindow()

void Chronos::Editor::EditorManager::ShapeDetailsWindow ( )

private

Definition at line 487 of file editorManager.cpp.

{
    if (this->showShapeDetailsWindow) {
    ImGui::Begin("Shape Details", &this->showShapeDetailsWindow);
    ImGui::SeparatorText("Shape Details");
    if (this->manager->getShapeDetails().size() == 0) {
        ImGui::Text("No Shapes");
    } else {
        ImGui::InputText(
        "Shape Name", this->shapeDetailsShapeParams.shapeName, 200);
        ImGui::DragFloat("X(-1 to 1)", &this->shapeDetailsShapeParams.x,
        0.01f, -1.0f, 1.0f);
        ImGui::SameLine();
        this->keyframeCheckbox(&this->shapeDetailsShapeParams.x, "X");
        ImGui::DragFloat("Y(-1 to 1)", &this->shapeDetailsShapeParams.y,
        0.01f, -1.0f, 1.0f);
        ImGui::SameLine();
        this->keyframeCheckbox(&this->shapeDetailsShapeParams.y, "Y");
        ImGui::DragFloat("X Size", &this->shapeDetailsShapeParams.xSize,
        0.01f, 0.0f, FLT_MAX);
        ImGui::SameLine();
        this->keyframeCheckbox(
        &this->shapeDetailsShapeParams.xSize, "X size");
        ImGui::DragFloat("Y Size", &this->shapeDetailsShapeParams.ySize,
        0.01f, 0.0f, FLT_MAX);
        ImGui::SameLine();
        this->keyframeCheckbox(
        &this->shapeDetailsShapeParams.ySize, "Y size");
        ImGui::DragFloat("Rotation",
        &this->shapeDetailsShapeParams.rotation, 0.01f, 0.0f, FLT_MAX);
        ImGui::SameLine();
        this->keyframeCheckbox(
        &this->shapeDetailsShapeParams.rotation, "Rotation(degrees)");
        ImGui::ColorEdit3(
        "Color", this->shapeDetailsShapeParams.color.data());
        this->manager->updateShape(
        this->shapeDetailsShapeNo, this->shapeDetailsShapeParams);
    }
    ImGui::End();
    }
}

Here is the caller graph for this function:

ShapeWindow()

void Chronos::Editor::EditorManager::ShapeWindow ( )

private

Definition at line 85 of file editorManager.cpp.

{
    if (this->showShapeWindow) {
    ImGui::Begin("Shape", &this->showShapeWindow);
    bool doesNameExist = false;
    ImGui::SeparatorText("Shape Name");
    ImGui::InputText("Shape Name", this->newShapeParams.shapeName, 200);
    std::vector<std::pair<int, Chronos::Manager::ShapeParams>>
        nameShapeDetails = this->manager->getShapeDetails();
    for (std::pair<int, Chronos::Manager::ShapeParams> shapeDetail :
        nameShapeDetails) {
        if (!strcmp(this->newShapeParams.shapeName,
            shapeDetail.second.shapeName)) {
        ImGui::Text("Name Already Exists");
        doesNameExist = true;
        break;
        }
    }
    ImGui::SeparatorText("Fill");
    ImGui::RadioButton("Color", &this->newShapeFill, 0);
    ImGui::RadioButton("Texture", &this->newShapeFill, 1);
    ImGui::SeparatorText("Properties");
    ImGui::DragFloat(
        "X(-1 to 1)", &this->newShapeParams.x, 0.01f, -1.0f, 1.0f);
    ImGui::DragFloat(
        "Y(-1 to 1)", &this->newShapeParams.y, 0.01f, -1.0f, 1.0f);
    ImGui::DragFloat(
        "X Size", &this->newShapeParams.xSize, 0.01f, 0.0f, FLT_MAX);
    ImGui::DragFloat(
        "Y Size", &this->newShapeParams.ySize, 0.01f, 0.0f, FLT_MAX);
    ImGui::DragFloat(
        "Rotation", &this->newShapeParams.rotation, 0.01f, 0.0f, FLT_MAX);
    switch (this->newShapeFill) {
    case 0:
        ImGui::ColorEdit3("Color", this->newShapeParams.color.data());
        break;
    case 1:
        if (ImGui::BeginCombo("Select Texture", currentShapeTextureName)) {
        std::vector<Chronos::Manager::TextureDetails> details
            = this->manager->getTextureDetails();
        if (details.size() == 0) {
            ImGui::Selectable("No Textures");
        } else {
            for (Chronos::Manager::TextureDetails textureDetail :
            details) {
            bool isSelected = currentShapeTextureSelection
                == textureDetail.textureNo;
            if (ImGui::Selectable(textureDetail.textureName.c_str(),
                isSelected)) {
                currentShapeTextureSelection
                = textureDetail.textureNo;
                strcpy(currentShapeTextureName,
                textureDetail.textureName.c_str());
                LOG(1,
                "Texture selected for shapeNo ["
                    + std::to_string(
                    currentShapeTextureSelection)
                    + "], textureName ["
                    + currentShapeTextureName + "]")
            }
            if (isSelected) {
                ImGui::SetItemDefaultFocus();
            }
            }
        }
        ImGui::EndCombo();
        }
    }
    if (!doesNameExist) {
        if (ImGui::Button("Add Shape")) {
        switch (this->newShapeFill) {
        case 0:
            this->manager->addShape(this->newShapeParams);
            LOG(1,
            "Colored shape added with shapeName ["
                + std::string(this->newShapeParams.shapeName) + "]")
            break;
        case 1:
            this->manager->addShape(this->newShapeParams,
            this->currentShapeTextureSelection);
            LOG(1,
            "Textured shape added with shapeName ["
                + std::string(this->newShapeParams.shapeName) + "]")
            break;
        }
        }
    }
    ImGui::SeparatorText("Current Shapes");
    if (ImGui::BeginListBox("Shapes")) {
        std::vector<std::pair<int, Chronos::Manager::ShapeParams>>
        shapeDetails = this->manager->getShapeDetails();
        if (shapeDetails.size() == 0) {
        ImGui::Selectable("No Shapes");
        } else {
        for (int i = 0; i < static_cast<int>(shapeDetails.size());
            i++) {
            if (ImGui::Selectable(shapeDetails[i].second.shapeName,
                this->currentShapeSelection == i)) {
            this->currentShapeSelection = i;
            }
        }
        }
        ImGui::EndListBox();
        if (shapeDetails.size() > 0) {
        ImGui::Text("Selected Shape: %d",
            shapeDetails[currentShapeSelection].first);
        if (ImGui::Button("Edit Shape")) {
            this->showShapeDetailsWindow = true;
            this->shapeDetailsShapeNo
            = shapeDetails[currentShapeSelection].first;
            this->shapeDetailsShapeParams
            = shapeDetails[currentShapeSelection].second;
        }
        ImGui::SameLine();
        if (ImGui::Button("Remove Shape")) {
            this->manager->removeObject(
            shapeDetails[currentShapeSelection].first);
        }
        }
    }

    ImGui::End();
    }
}

References LOG.

Here is the caller graph for this function:

TextDetailsWindow()

void Chronos::Editor::EditorManager::TextDetailsWindow ( )

private

Definition at line 563 of file editorManager.cpp.

{
    if (this->showTextDetailsWindow) {
    ImGui::Begin("Text Details", &this->showTextDetailsWindow);
    ImGui::SeparatorText("Text Details");
    std::vector<std::pair<int, Chronos::Engine::TextParams>> textDetails
        = this->manager->getTextDetails();
    if (textDetails.size() == 0) {
        ImGui::Text("No Text");
    } else {
        char inputText[2048];
        strcpy(inputText, this->textDetailsTextParams.text.c_str());
        ImGui::InputText("Text", inputText, 2048);
        if (inputText[0] != '\0') {
        this->textDetailsTextParams.text = inputText;
        ImGui::Text("Text Field cannot be empty");
        }

        ImGui::DragFloat("X(-1 to 1)", &this->textDetailsTextParams.x,
        0.01f, -1.0f, 1.0f);
        ImGui::DragFloat("Y(-1 to 1)", &this->textDetailsTextParams.y,
        0.01f, -1.0f, 1.0f);
        ImGui::DragFloat("Rotation", &this->textDetailsTextParams.rotation,
        0.01f, 0.0f, FLT_MAX);
        ImGui::DragFloat("Scale", &this->textDetailsTextParams.scale, 0.01f,
        0.0f, FLT_MAX);
        ImGui::ColorEdit3(
        "Color", this->textDetailsTextParams.color.data());
        this->manager->updateText(
        this->textDetailsTextNo, this->textDetailsTextParams);
    }
    ImGui::End();
    }
}

Here is the caller graph for this function:

TextureDetailsWindow()

void Chronos::Editor::EditorManager::TextureDetailsWindow ( )

private

Definition at line 529 of file editorManager.cpp.

{
    if (this->showTextureDetailsWindow) {
    ImGui::Begin("Texture Details", &this->showTextureDetailsWindow);
    ImGui::SeparatorText("Texture Details");
    std::vector<Chronos::Manager::TextureDetails> textureDetails
        = this->manager->getTextureDetails();
    if (textureDetails.size() == 0) {
        ImGui::Text("No Textures");
    } else {
        ImGui::Text("Texture Name: %s",
        textureDetails[this->textureDetailsCurrentSelection]
            .textureName.data());
        ImGui::Text("Texture Path: %s",
        textureDetails[this->textureDetailsCurrentSelection]
            .texturePath.data());
        ImGui::Text("Width: %d",
        textureDetails[this->textureDetailsCurrentSelection].width);
        ImGui::Text("Height: %d",
        textureDetails[this->textureDetailsCurrentSelection].height);
        ImGui::SeparatorText("Texture Preview");
        ImGui::Image(
        (ImTextureID)
            textureDetails[this->textureDetailsCurrentSelection]
            .descriptorSet,
        ImVec2(
            textureDetails[this->textureDetailsCurrentSelection].width,
            textureDetails[this->textureDetailsCurrentSelection]
            .height));
    }
    ImGui::End();
    }
}

Here is the caller graph for this function:

TextureWindow()

void Chronos::Editor::EditorManager::TextureWindow ( )

private

Definition at line 210 of file editorManager.cpp.

{
    if (this->showTextureWindow) {
    ImGui::Begin("Texture", &this->showTextureWindow);
    bool doesTextureExist = false;
    ImGui::SeparatorText("Add Textures");
    ImGui::InputText("Texture Path", this->newTexturePath, 200);
    ImGui::InputText("Texture Name", this->newTextureName, 200);
    std::vector<Chronos::Manager::TextureDetails> nameTextureDetails
        = this->manager->getTextureDetails();
    for (Chronos::Manager::TextureDetails textureDetail :
        nameTextureDetails) {
        if (!strcmp(
            this->newTextureName, textureDetail.textureName.c_str())) {
        ImGui::Text("Name Already Exists");
        doesTextureExist = true;
        break;
        }
        if (std::string(this->newTextureName).size() == '\0') {
        ImGui::Text("Name Cannot be empty");
        doesTextureExist = true;
        break;
        }
        if (!std::string(this->newTexturePath).ends_with(".jpg")
        && !std::string(this->newTexturePath).ends_with(".png")) {
        ImGui::Text("Only jpg and png files are supported");
        doesTextureExist = true;
        break;
        }
    }

    if (!doesTextureExist) {
        if (ImGui::Button("Add Texture")) {
        this->manager->addTexture(
            this->newTexturePath, this->newTextureName);
        this->newTexturePath[0] = '\0';
        LOG(1,
            "Texture added with textureName ["
            + std::string(this->newTextureName)
            + "] and texturePath [" + this->newTexturePath + "]")
        }
    }
    ImGui::SeparatorText("Current Textures");
    std::vector<Chronos::Manager::TextureDetails> details
        = this->manager->getTextureDetails();
    if (ImGui::BeginListBox("Textures")) {
        if (details.size() == 0) {
        ImGui::Selectable("No Textures");
        } else {
        for (int i = 0; i < static_cast<int>(details.size()); i++) {
            if (ImGui::Selectable(details[i].textureName.c_str(),
                currentTextureSelection == i)) {
            currentTextureSelection = i;
            }
        }
        }
        ImGui::EndListBox();
    }
    if (details.size() > 0) {
        if (ImGui::Button("Remove Texture")) {
        this->manager->removeTexture(
            details[currentTextureSelection].textureNo);
        LOG(1,
            "Texture removed with textureNo ["
            + std::to_string(
                details[currentTextureSelection].textureNo)
            + "]")
        }
        ImGui::SameLine();
        if (ImGui::Button("View Texture Details")) {
        this->showTextureDetailsWindow = true;
        LOG(1,
            "Texture selected for editing with textureNo ["
            + std::to_string(this->textureDetailsCurrentSelection)
            + "]")
        }
    }
    ImGui::End();
    }
}

References LOG.

Here is the caller graph for this function:

TextWindow()

void Chronos::Editor::EditorManager::TextWindow ( )

private

Definition at line 291 of file editorManager.cpp.

{
    if (this->showTextWindow) {
    ImGui::Begin("Text", &this->showTextWindow);
    ImGui::SeparatorText("Add Text");
    char inputText[2048];
    strcpy(inputText, this->newTextParams.text.c_str());
    ImGui::InputText("Text", inputText, 2048);
    this->newTextParams.text = inputText;
    ImGui::DragFloat(
        "X(-1 to 1)", &this->newTextParams.x, 0.01f, -1.0f, 1.0f);
    ImGui::DragFloat(
        "Y(-1 to 1)", &this->newTextParams.y, 0.01f, -1.0f, 1.0f);
    ImGui::DragFloat(
        "Rotation", &this->newTextParams.rotation, 0.01f, 0.0f, FLT_MAX);
    ImGui::DragFloat(
        "Scale", &this->newTextParams.scale, 0.01f, 0.0f, FLT_MAX);
    ImGui::ColorEdit3("Color", this->newTextParams.color.data());
    if (ImGui::BeginCombo(
        "Select Font", this->currentFontSelection.c_str())) {
        if (ImGui::Selectable(
            "consolas", this->currentFontSelection == "consolas")) {
        this->currentFontSelection = "consolas";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        if (ImGui::Selectable("consolas_bold",
            this->currentFontSelection == "consolas_bold")) {
        this->currentFontSelection = "consolas_bold";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        if (ImGui::Selectable(
            "arial", this->currentFontSelection == "arial")) {
        this->currentFontSelection = "arial";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        if (ImGui::Selectable(
            "arial_bold", this->currentFontSelection == "arial_bold")) {
        this->currentFontSelection = "arial_bold";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        if (ImGui::Selectable(
            "times", this->currentFontSelection == "times")) {
        this->currentFontSelection = "times";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        if (ImGui::Selectable(
            "times_bold", this->currentFontSelection == "times_bold")) {
        this->currentFontSelection = "times_bold";
        LOG(1, "Font selected [" + this->currentFontSelection + "]")
        }
        ImGui::EndCombo();
    }
    ImGui::DragInt("Font Size", &this->currentFontSizeSelection, 1, 6, 50);
    if (this->newTextParams.text.size() == 0) {
        ImGui::Text("Text Cannot be empty");
    } else {
        if (ImGui::Button("Add Text")) {
        this->manager->addText(this->newTextParams,
            this->currentFontSelection, this->currentFontSizeSelection);
        LOG(1,
            "Text added with text [" + this->newTextParams.text + "]")
        }
    }
    ImGui::SeparatorText("Current Text");
    if (ImGui::BeginListBox("Text")) {
        std::vector<std::pair<int, Chronos::Engine::TextParams>> textDetails
        = this->manager->getTextDetails();
        if (textDetails.size() == 0) {
        ImGui::Selectable("No Text");
        } else {
        for (int i = 0; i < static_cast<int>(textDetails.size()); i++) {
            if (ImGui::Selectable(textDetails[i].second.text.c_str(),
                this->currentTextSelection == i)) {
            this->currentTextSelection = i;
            }
        }
        }
        ImGui::EndListBox();
        if (textDetails.size() > 0) {
        if (ImGui::Button("Edit Text")) {
            this->showTextDetailsWindow = true;
            this->textDetailsTextNo
            = textDetails[currentTextSelection].first;
            this->textDetailsTextParams
            = textDetails[currentTextSelection].second;
            LOG(1,
            "Text selected for editing with textNo ["
                + std::to_string(this->textDetailsTextNo) + "]")
        }
        ImGui::SameLine();
        if (ImGui::Button("Remove Text")) {
            this->manager->removeObject(
            textDetails[currentTextSelection].first);
            LOG(1,
            "Text removed with textNo ["
                + std::to_string(
                textDetails[currentTextSelection].first)
                + "]")
        }
        }
    }
    ImGui::End();
    }
}

References LOG.

Here is the caller graph for this function:

TotalCodeGenerationWindow()

void Chronos::Editor::EditorManager::TotalCodeGenerationWindow ( )

private

Definition at line 628 of file editorManager.cpp.

{
    if (this->showGeneratedCodeWindow) {
    ImGui::Begin("Generated Code", &this->showGeneratedCodeWindow);
    ImGui::SeparatorText("Generated Code");
    std::string code = Chronos::Editor::generateCode(this->manager);
    ImGui::InputTextMultiline("Code", code.data(), code.size(),
        ImVec2(800, 600), ImGuiInputTextFlags_ReadOnly);
    ImGui::End();
    }
}

References Chronos::Editor::generateCode().

Here is the call graph for this function:

Here is the caller graph for this function:

updateKeyframes()

void Chronos::Editor::EditorManager::updateKeyframes ( )

private

Definition at line 722 of file editorManager.cpp.

{
    for (auto& [key, value] : this->floatPointerToKeyframeNo) {
    *key = this->manager->keyframeGetVariable(value);
    LOG(4,
        "Updated keyframe value for keyframeNo [" + std::to_string(value)
        + "] to [" + std::to_string(*key) + "]")
    }
}

References LOG.

Here is the caller graph for this function:

Member Data Documentation

bgColor

float Chronos::Editor::EditorManager::bgColor[3] = { 0, 0, 0 }

private

Definition at line 113 of file editorManager.hpp.

{ 0, 0, 0 };

currentFontSelection

std::string Chronos::Editor::EditorManager::currentFontSelection = "consolas"

private

Definition at line 95 of file editorManager.hpp.

currentFontSizeSelection

int Chronos::Editor::EditorManager::currentFontSizeSelection = 6

private

Definition at line 96 of file editorManager.hpp.

currentKeyframeValuePointer

float* Chronos::Editor::EditorManager::currentKeyframeValuePointer = nullptr

private

Definition at line 120 of file editorManager.hpp.

currentShapeSelection

int Chronos::Editor::EditorManager::currentShapeSelection = 0

private

Definition at line 86 of file editorManager.hpp.

currentShapeTextureName

char Chronos::Editor::EditorManager::currentShapeTextureName[200] = "Select Texture"

private

Definition at line 85 of file editorManager.hpp.

currentShapeTextureSelection

int Chronos::Editor::EditorManager::currentShapeTextureSelection = 0

private

Definition at line 84 of file editorManager.hpp.

currentTextSelection

int Chronos::Editor::EditorManager::currentTextSelection = 0

private

Definition at line 97 of file editorManager.hpp.

currentTextureSelection

int Chronos::Editor::EditorManager::currentTextureSelection = 0

private

Definition at line 91 of file editorManager.hpp.

floatPointerToKeyframeNo

std::unordered_map<float*, int> Chronos::Editor::EditorManager::floatPointerToKeyframeNo

private

Definition at line 119 of file editorManager.hpp.

fullScreen

bool Chronos::Editor::EditorManager::fullScreen = false

private

Definition at line 114 of file editorManager.hpp.

isWindowFullscreen

bool Chronos::Editor::EditorManager::isWindowFullscreen = false

private

Definition at line 115 of file editorManager.hpp.

manager

Chronos::Manager::Manager* Chronos::Editor::EditorManager::manager

private

Definition at line 36 of file editorManager.hpp.

msaaSamples

std::string Chronos::Editor::EditorManager::msaaSamples = "1"

private

Definition at line 116 of file editorManager.hpp.

newShapeFill

int Chronos::Editor::EditorManager::newShapeFill = 0

private

Definition at line 83 of file editorManager.hpp.

newShapeParams

Chronos::Manager::ShapeParams Chronos::Editor::EditorManager::newShapeParams

private

Definition at line 82 of file editorManager.hpp.

newTextParams

Chronos::Engine::TextParams Chronos::Editor::EditorManager::newTextParams

private

Definition at line 94 of file editorManager.hpp.

newTextureName

char Chronos::Editor::EditorManager::newTextureName[200]

private

Definition at line 90 of file editorManager.hpp.

newTexturePath

char Chronos::Editor::EditorManager::newTexturePath[200]

private

Definition at line 89 of file editorManager.hpp.

pinMenuBar

bool Chronos::Editor::EditorManager::pinMenuBar = true

private

Definition at line 37 of file editorManager.hpp.

presentMode

std::string Chronos::Editor::EditorManager::presentMode = "mailbox"

private

Definition at line 112 of file editorManager.hpp.

shapeDetailsShapeNo

int Chronos::Editor::EditorManager::shapeDetailsShapeNo = 0

private

Definition at line 101 of file editorManager.hpp.

shapeDetailsShapeParams

Chronos::Manager::ShapeParams Chronos::Editor::EditorManager::shapeDetailsShapeParams

private

Definition at line 100 of file editorManager.hpp.

showAnimationWindow

bool Chronos::Editor::EditorManager::showAnimationWindow = false

private

Definition at line 42 of file editorManager.hpp.

showDebugLogWindow

bool Chronos::Editor::EditorManager::showDebugLogWindow = false

private

Definition at line 52 of file editorManager.hpp.

showDebugMetricsWindow

bool Chronos::Editor::EditorManager::showDebugMetricsWindow = false

private

Definition at line 51 of file editorManager.hpp.

showGeneratedCodeWindow

bool Chronos::Editor::EditorManager::showGeneratedCodeWindow = false

private

Definition at line 44 of file editorManager.hpp.

showKeyframeDetailsWindow

bool Chronos::Editor::EditorManager::showKeyframeDetailsWindow = false

private

Definition at line 49 of file editorManager.hpp.

showSettingsWindow

bool Chronos::Editor::EditorManager::showSettingsWindow = false

private

Definition at line 43 of file editorManager.hpp.

showShapeDetailsWindow

bool Chronos::Editor::EditorManager::showShapeDetailsWindow = false

private

Definition at line 46 of file editorManager.hpp.

showShapeWindow

bool Chronos::Editor::EditorManager::showShapeWindow = false

private

Definition at line 39 of file editorManager.hpp.

showTextDetailsWindow

bool Chronos::Editor::EditorManager::showTextDetailsWindow = false

private

Definition at line 48 of file editorManager.hpp.

showTextureDetailsWindow

bool Chronos::Editor::EditorManager::showTextureDetailsWindow = false

private

Definition at line 47 of file editorManager.hpp.

showTextureWindow

bool Chronos::Editor::EditorManager::showTextureWindow = false

private

Definition at line 40 of file editorManager.hpp.

showTextWindow

bool Chronos::Editor::EditorManager::showTextWindow = false

private

Definition at line 41 of file editorManager.hpp.

textDetailsTextNo

int Chronos::Editor::EditorManager::textDetailsTextNo = 0

private

Definition at line 105 of file editorManager.hpp.

textDetailsTextParams

Chronos::Engine::TextParams Chronos::Editor::EditorManager::textDetailsTextParams

private

Definition at line 104 of file editorManager.hpp.

textureDetailsCurrentSelection

int Chronos::Editor::EditorManager::textureDetailsCurrentSelection = 0

private

Definition at line 108 of file editorManager.hpp.

windowTitle

char Chronos::Editor::EditorManager::windowTitle[200] = GAME_NAME

private

Definition at line 111 of file editorManager.hpp.

---

The documentation for this class was generated from the following files:

• Source/Editor/editorManager.hpp
• Source/Editor/editorManager.cpp
